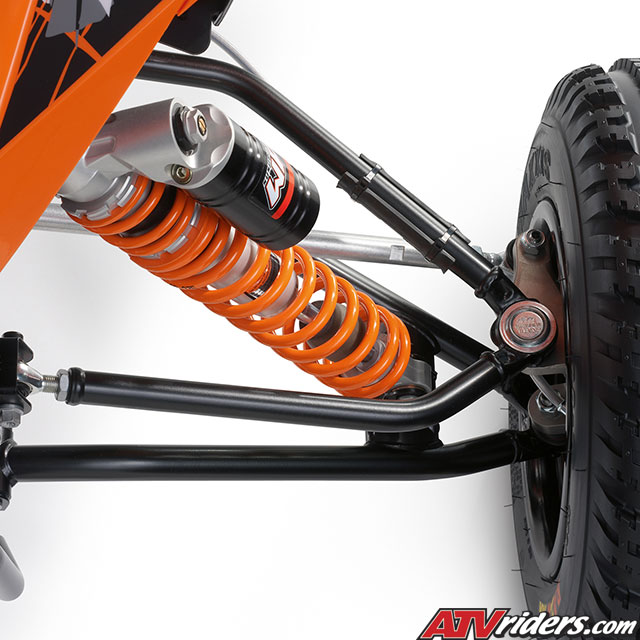

Front Chromoly steel SX A-arms provide
a 49.8 in. width with adjustable caster
/ camber. This results in superior
motocross handling.
A-arm width designed exclusively
for motocross racing.
Upper arms fitted with adjustable
(replaceable) Heim joint bearings.
Lower needle bearings and upper
/ lower ball joints are replaceable.
A-arms are extremely durable, and
provide easy maintenance with reduced
cost.
Front
ATV Suspension
KTM
450 SX & 505 SX ATV
Front A-Arm
Industry - exclusive fully adjustable
WP piggyback suspension elements with
high/low speed compression, preload
and rebound adjustments. Dual rate
springs with adjustable crossover.
9.6 in. front wheel travel.
Highest Ready to Race quality, adjustable
for rider preference and varying terrains.
Specifically designed for Motocross.
Rear
Wheel Suspension

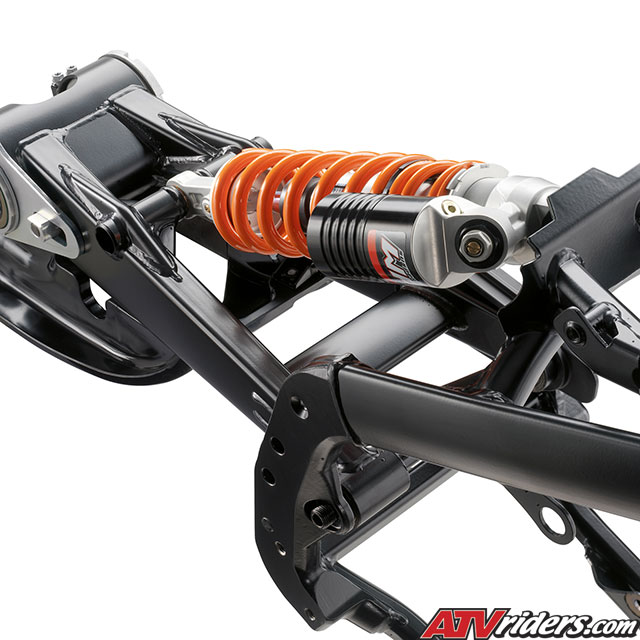

Strong Chromoly steel swingarm
with eccentric chain adjuster.
Chromoly rear axle with high quality
tapered roller bearings that are easy
to lubricate.

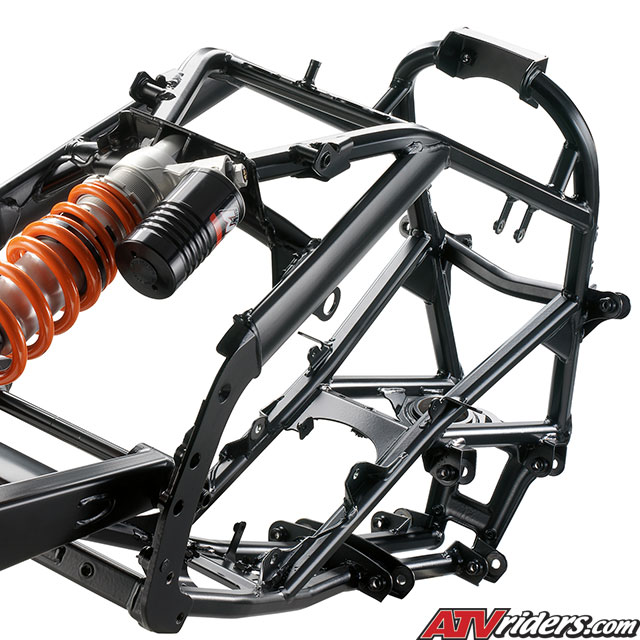

New shock anchorage point for MX
application with 10 mm longer shaft
travel.
Adjustable axle width from 47 –
50 in. for race conditions.
Self locking rear axle nut for quick
tire changes.
WP “Progressive Damping System”
(PDS) single shock with preload, high
and low speed compression and rebound
adjustment. Industry exclusive dual
rate springs with adjustable crossover.
Allows a no linkage design for reduced
weight, maximum ground clearance and
easy maintenance.
10.4 in. rear wheel travel.
Chromoly rear axle with high quality
tapered roller bearings that are easy
to lubricate.
Provides excellent damping at lowest
possible weight.
