2009 KTM 450SX
& 505SX Race Ready ATV - SX Chassis
 |
KTM 450SX
and 505 SX ATV Subframe
|
Frame
Lightweight and powder-coated Chromoly steel
design derived from the proven bike frames.
Chassis places the engine low for a low center
of gravity and optimal swingarm pivot to countershaft
position. Provides excellent durability and
performance.

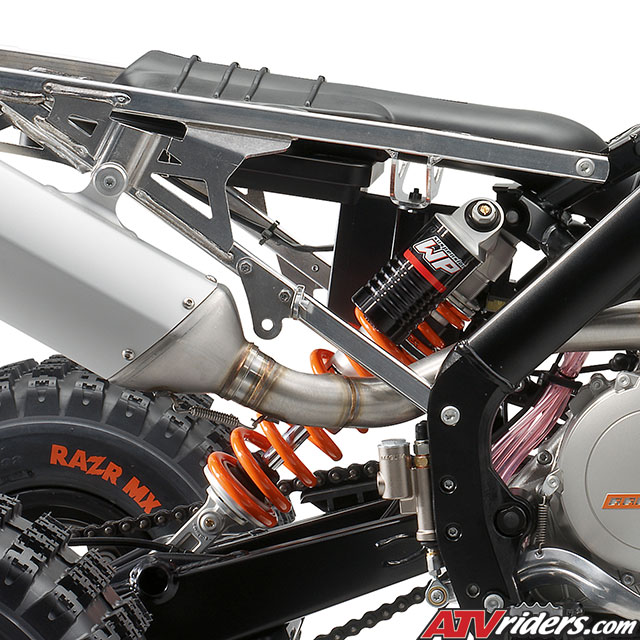

Subframe
Aluminium subframe with removable rear grab
bar. Lightweight, durable and easy to remove.
Steering
Adjustable aluminium steering stem and handlebar
clamps (4 positions). Premium MAGURA handlebar
made of tapered aluminium.
Optional Öhlins Steering Stabilizer
can be mounted on the bottom of the steering
stem (standard built in steering stabilizer
mount).
Maximum Strength at minimal possible weight.
 |
 |
|

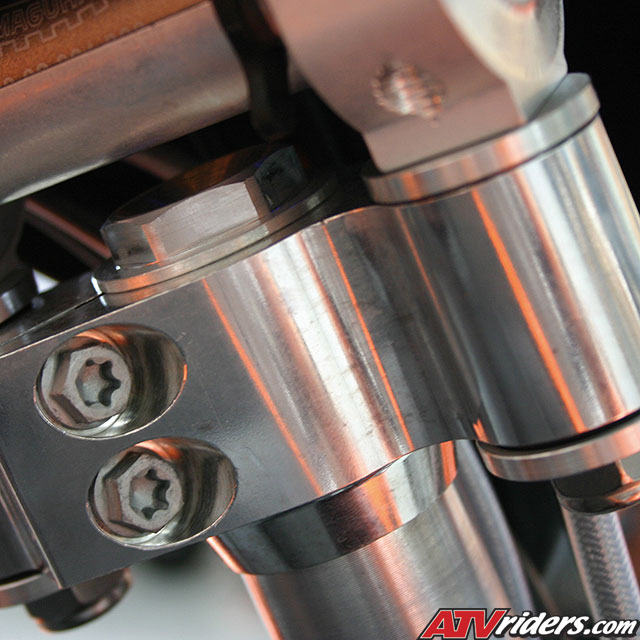

KTM SX
ATV Steering Stem
|

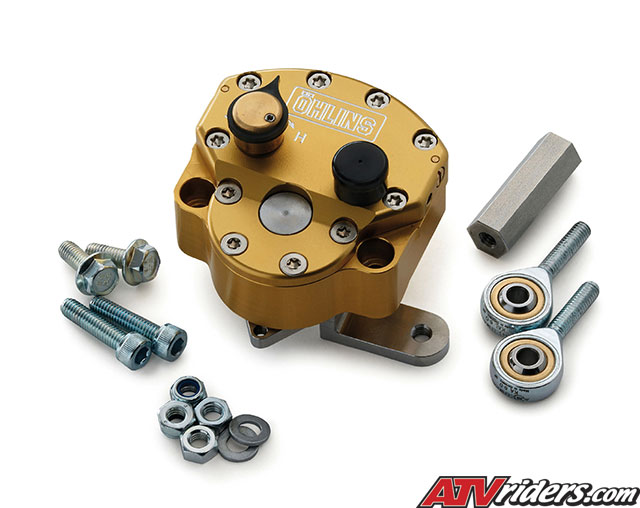

Öhlins
Steering Stabilizer for SX ATV's
|
MAGURA
Brake System
Front: 4-piston
fixed calipers with 180 mm discs vented for
cooling and cleaning capability. Fitted with
an adjustable lever with an integrated break
point and lightweight parking brake.
 |
 |
KTM's
SX ATV Front Brakes
|

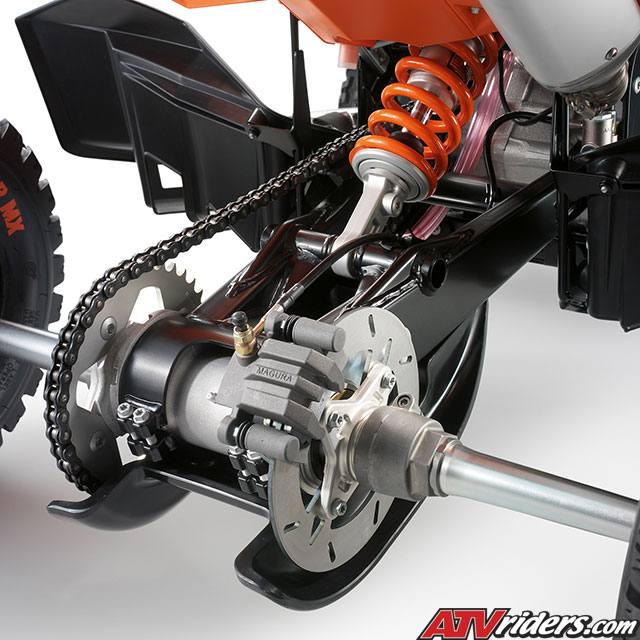

KTM's
SX Model Rear Brake Assembly
|
Rear: 1-piston floating
caliper, large 200 mm brake disc. Master cylinder
with integrated reservoir. Most powerful brake
system produced by MAGURA exclusively for
KTM.
