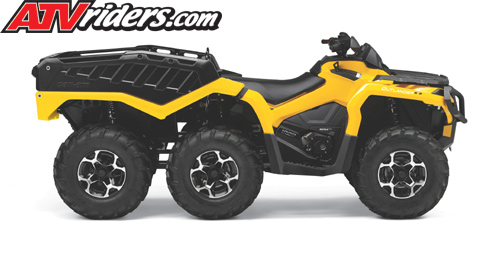

2015 Can-Am Outlander 6x6 1000 XT Features

PERFORMANCE

2-hp Rotax V-Twin 1000
At the core of the Outlander 6x6 rests an 82-hp Rotax 1000 liquid-cooled V-Twin engine complete with four valves per cylinder and single overhead camshafts. The Can-Am Rotax engines offer unmatched power and performance while remaining both reliable and efficient. Progressive throttle control means the power remains manageable in slow-speed circumstances or during a flat-out sprint.

Dual-room, no-tools air box
The Outlander 6x6 has a dual-room, no-tools air box that is elevated and centralized for unmatched efficiency. Its dual-room setup works diligently to capture and trap dirty air and then effectively transfer clean air to the engine for optimal performance. The air filter is securely attached to the air box housing with a screw-on system and push plate that work in tandem to create a tight seal.

CVT transmission with extra-low L gear
The Continuously Variable Transmission (CVT) on the Outlander 6x6 has an extra low range “L-gear” to allow for an increased workload, but also has a softer engagement. CVT intake features improved cooling for better efficiency in work conditions. The CVT system improves the transmission performance in wet terrain and conditions with its secure, 13-bolt sealing system. A dedicated drain plug is built into the cover and easily accessible if the need ever arises to remove water from the CVT housing. The CVT intake is at a higher location in the chassis for optimal performance in wet riding conditions.

Relocated air intakes
The engine’s air intake and CVT inlets have been positioned as high as possible on the Outlander 6x6 to improve breathing while navigating wet and muddy conditions.

Large radiator
The large, efficient radiator offers around 27 kW of cooling capacity to keep the engine running cool for optimal performance.

Double Torsional Trailing arm Independent (TTI2) rear suspension
The ATV industry’s only four-wheel independent rear suspension that eliminates scrub and camber changes, meaning the wheels pivot up and down rather than in a butterfly motion. This ensures the vehicle moves only in the direction you point it. Designed to improve traction and optimize transfer of power to the ground. Offering a five-way preload adjustable shocks and 9.3 inches of suspension travel, it can soak up rough terrain while keeping the rider comfortable and focused on the trail.

Quick-release sway bar
With its integrated Quick-Release Sway Bar, owners can adjust the amount of articulation from the rear TTI to improve the ride for both heavy loads or when unloaded.

Double A-arm front suspension with dive-control geometry
The front suspension features a dive-control, a shortened spindle, along with anti-kickback geometry to provide a better steering. Front-end suspension travel is 9.0 inches (22.9 cm) for improved trail comfort. Five-way preload shocks offer more than an inch of additional suspension travel.

Surrounding Spar Technology (SST) G2 Frame
The Outlander 6x6 uses the industry-exclusive Surround Spar Technology (SST) second-generation frame. Featuring an 82-inch wheelbase, it incorporates Geometric Contact Control and enhancements for structural integrity, durability and handling.

Tri-mode Dynamic Power Steering (DPS)
The Tri-Mode DPS features three selectable modes (MIN, MED, and MAX) of steering to adapt to your riding preference. Each mode is designed to offer less assist at high speed for better precision and more assist at low speed for easier steering. Direct Link technology ensures fast response and less kickback.

Visco-Lok QE auto-locking front differential
QE stands for quicker engagement. For situations that require optimal traction and as much contact patch with the terrain at hand, the Outlander 6x6 offers both 4x6 and 6x6 with its Visco-Lok QE. Once 6x6 is selected, the system intelligently transfers power from the slipping front wheel to the opposing wheel with traction and is not hampered by a speed or rev limiters. The progressively and automatically locking front differential system requires no additional buttons to push or levers to hold. Features selectable four- and six-wheel shaft drive. In 4x6 mode, all four rear wheels provide traction.

214mm disc brakes with twin-piston calipers
The 2015 CanAm Outlander 1000 6x6 XT features outboard 214mm hydraulic disc brakes with twin-piston calipers, front and rear, for superior stopping power.

12-inch cast-aluminum wheels
The stylish 12-inch, machined cast-aluminum wheels have a computer-optimized configuration that increases strength in critical areas while removing unnecessary weight from other sections of the wheels.

26-inch Carlisle ACT Radial tires
Proven 26-inch ACT Radial tires from Carlisle provide a smoother ride and better shock absorption.

11-inch ground clearance
When combined with its impressive suspension travel, Visco-Lok QE and true 6x6 capabilities, the 11-inch ground clearance on the Outlander 6x6 makes conquering rugged terrain a snap.

Standard skid plate
The high-strength skid plate is made from proven materials and is designed for supreme protection and has the ability to slide over certain obstacles.

Dual-Level cargo box with modular accessories
This unique cargo box features dual storage levels, 700-lb (318 kg) of total hauling capacity and tilt-assist dumping. It can adapt to your needs with its standard side panels that are easily removable allowing to transform to a flatbed in seconds or with the available options like the enclosed storage, log bars, tailgate extension and more.

Multi-function front rack with LinQ quick-attach accessory system
The rack, with a 100-pound (45 kg) capacity, has an anti-ski surface and elevated ridges to keep gear in position. Multiple tie-down points, holes and predetermined “cutouts” for LinQ accessories makes for a convenient setup. Add available rack extension or modular storage bags in seconds.

1,650-pound towing capacity
Fully equipped to move a load, the Outlander 6x6 has a 2-in. receiver hitch and a 1,650-lb (750 kg) towing capacity that comes standard.

Easy access for maintenance
The Can-Am Outlander 1000 6x6 XT has a maintenance-friendly design. The battery is beneath the seat to offer easier access and improved protection. The rear brake fluid reservoir, solenoid starter and relays are also conveniently located under the seat.

230-W headlights
The most lighting output of any ATV in the industry, these headlights honor the Can-Am heritage while offering enhanced visibility for trail riding. On high beam, the twin 60-W projectors and dual 55-W reflectors give the Outlander 230 W of visual clarity.

625-W magneto
The largest magneto in the industry can be found on the Outlander 1000 6x6 XT. At 625 watts, it means more amps for powering accessories.

Large 5.4-Gal (20.5L) fuel tank
The Outlander has a capacity of 5.4 gallons (20.5 liters), which means one can ride longer and work harder.

Multi-function digital gauge
Our easy-to-read multi-function gauge is equipped with a digital information center, including a speedometer, tachometer, odometer, trip meter, gear position, hour meter, engine hour meter, temperature and engine lights, fuel gauge, 6x6 indicator and clock.

D.E.S.S. (Digitally Encoded Security System)
D.E.S.S. is the ATV industry’s lone factory-installed anti-theft device. The system utilizes electronic key codes that are required to match each specific ATV’s ECM. The machine will not start unless the coded microchip in the key matches the code pre-installed in the engine control module. Two keys are included with each model. The performance key allows the ATV to operate at maximum performance. The Normal key limits acceleration and top speed.

3,000-pound Warn winch
Warn is a highly respected name in the off-road industry and the Outlander XT features a 3,000-pound Warn winch with roller fairlead, wired remote control and integrated remote storage in the rear cargo hold.

Heavy-duty front bumper
For an edgier and more rugged trim, the XT models include heavy-duty front bumper.

Handlebar wind deflectors
Wind deflectors provide improved protection from brush and cold weather and also offer a distinguished look.

Stylish design
The 2015 Outlander 1000 6x6 XT features a style that mimics the four-wheeled Outlander ATVs and could be described as aggressive sophistication. Its muscular facade includes a more seamless makeup and less apparent fasteners for a cleaner look.

Colors available
The Can-Am Outlander 1000 6x6 XT is available in signature yellow and NEXT G-1 Vista camo.
