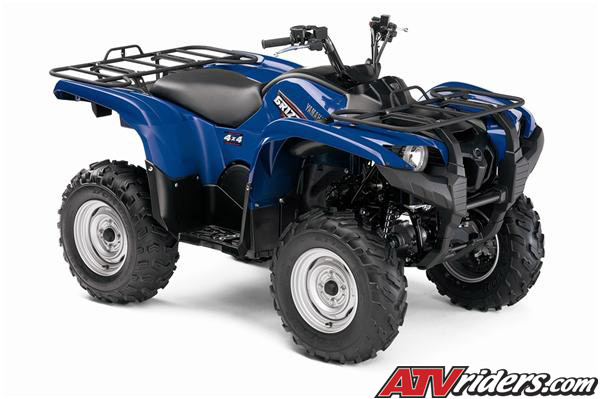

2008 Yamaha Grizzly 700 FI
Auto. 4x4 Utility ATV Info
 |
|
 |
|
2008 Yamaha
Grizzly 700 FI 4x4 Utility ATV
|
Grizzly
700R FI ATV Key Features
|
- Most powerful Grizzly ever:
686cc liquid-cooled, four-stroke engine and
light weight add up to the best power-to-weight
ratio of any utility model in the industry.
- Electronic fuel injection
means instantaneous cold starts and optimal
performance in all conditions and at all altitudes.
- Industry-exclusive, fully
automatic Ultramatic™ transmission is
the most advanced drive system in ATV-ing.
An automatic centrifugal clutch
maintains constant belt tension for reduced
belt wear and industry-exclusive all-wheel
downhill engine braking.
- Industry-exclusive, three-position
On-Command™ In/Out 4WD feature lets
you switch between 2WD, limited-slip 4WD and
fully locked differential 4WD—all with
the simple push of a button.
- Fully independent long-travel
four-wheel suspension with WideArc A-arms
up front and fi ve-way preload-adjustable
shocks provides maximum ground clearance for
unparalleled comfort over rough terrain.
- Trick digital instrument
panel boasts a multifunction LCD display with
speedometer, odometer, dual tripmeters, hourmeter,
4WD status, transmission position, clock and
fuel gauge
|
Grizzly
700R FI ATV Engine
|
- Raptor-based four-valve
combustion chamber design produces a potent
combination of low-rev torque, right-now throttle
response and high horsepower.
- Compact engine design features
a 35-degree cylinder angle for ground clearance
and lower seat height for quick steering and
maneuverability.
- Electronic fuel injection
provides a perfect fuel/air mixture regardless
of temperature or altitude, and makes cold
starts a snap.
- Gear-driven crankshaft balancer
shaft and new-design rubber-damper engine
mounts reduce vibration.
- Ceramic-composite cylinder
liners provide outstanding durability and
heat dissipation; forged piston is light and
strong and rides a carburized, chrome-moly
connecting rod.
- Two-lobe overhead cam and
a pair of needle-roller rocker arms reduce
friction by 50 percent for increased fuel
efficiency and torque.
- Mikuni fuel injection with
44mm bore and throttle position sensor means
easy cold starts and flawless fuel delivery
in nearly any condition.
- Pushbutton electric starting
with seven-disk torque-limiting damper assembly
to protect the starter motor.
- Straight driveshaft layout
to the front differential eliminates U-joints
for reduced friction, vibration and maintenance.
- Stainless steel exhaust
system features aluminum heat shields and
a screen-type spark arrestor for great power
with minimum noise output.
- High-capacity aluminum radiator
with fan-assist delivers maximum cooling efficiency
and is positioned high in the frame for optimal
protection.
- Automatic cam chain tensioner
reduces engine maintenance and helps extend
engine life.
- Five-position shift lever
with H, L, N, R and P gates for positive Ultramatic
transmission operation.
- Override button allows engine
to make maximum rpm in full Diff Lock mode.
- Electronic servo-activated
2WD/4WD/Diff Lock via the On-Command™
system.
- Sealed drive case keeps
out water and debris to help prevent belt
from slipping.
|
Grizzly
700R FI ATV Chassis/Suspension
|
- Comfortable chassis provides
outstanding handling and maneuverability.
- WideArc front suspension
A-arms provide outstanding ground clearance.
- Five-way preload adjustable
shocks provide a controlled, comfortable ride
whatever the load or trail conditions.
- Four-wheel hydraulic disc
brakes serve up consistent, long-lasting braking
power under all sorts of nasty conditions.
- 5.3-gallon fuel tank is
located under the seat for excellent mass
centralization and handling; there’s
a 4.8-liter waterproof storage compartment
under there, too.
- 11.8 inches of ground clearance
and full-length composite skid plate deliver
maximum underbelly protection while enhancing
terrainability.
- 25x8-12 front and 25x10-12
rear Dunlop tires provide responsive steering
and handling and excellent comfort.
- Rugged injection-molded
front bumper and CV joint guards protect against
rock and debris damage.
|
|
- LCD instrument display contains
fuel injection information as well as bar-type
fuel gauge, odometer, tripmeter, clock and
Diff Lock indicator.
- An analog speedometer shows
your velocity at a glance.
- Rugged steel cargo racks
with special, extra-durable wrinkle paint
finish can pack a total of 286 pounds combined
(99 front, 187 rear).
- Center-mounted, heavy-duty
trailer hitch comes standard and can tow over
1,200 pounds.
- Large, specially designed
seat is extra plush and widely contoured for
all-day rider comfort.
- Dual 35-watt multireflector
Halogen bulb headlights with high/ low beams
light up the night.
|
