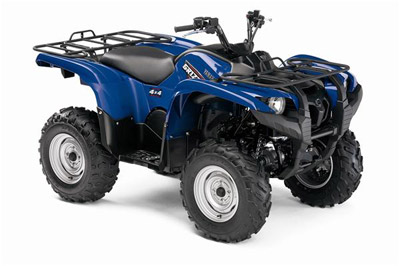

2008 Grizzly 700 FI Auto. 4x4
Utility ATV - Specifications
Grizzly
700R FI ATV Specifications:
|
| Type |
686cc liquid-cooled
w/fan, SOHC four-stroke single; 4-valve |
|
| Bore
x Stroke |
102mm x 84mm |
|
| Compression
Ratio |
9.2:1 |
|
| Carburetion |
Yamaha Fuel Injection
(YFI), 44mm |
|
| Ignition |
32 Bit ECU |
|
| Starting
System |
Electric |
|
| Transmission |
Yamaha Ultramatic®
V-belt/H, L, N, R, P |
|
| Engine
Braking |
All wheel |
|
| Drive
Train |
Yamaha On-Command®
pushbutton 3-way locking differential, 2WD, 4WD,
locked 4WD; shaft |
| |
|
| |
| Suspension/Front |
Independent double
wishbone, 7.1” travel w/5-way preload adjustment |
|
| Suspension/Rear |
Independent double
wishbone, 9.5” travel w/5-way preload adjustment |
|
| Brakes/Front |
Dual hydraulic
disc |
|
| Brakes/Rear |
Dual hydraulic
disc |
|
| Tires/Front |
AT25 x 8-12 |
|
| Tires/Rear |
AT25 x 10-12 |
| |
|
| L x W
x H |
81.3" x 46.5"
x 48.8" |
|
| Seat
Height |
35.6" |
|
| Wheelbase |
49.2" |
|
| Turning
Radius |
126" |
|
| Ground
Clearance |
11.8" |
|
| Fuel
Capacity |
5.3 gal. |
|
| Dry Weight |
600 lb. |
|
| Rack
Capacity |
99 lb. front/187
lb. rear |
|
| Towing
Capacity |
1212 lb. |
| |
|
| Instrumentation |
Digital LCD multifunction
display: speedometer, odometer, dual tripmeter,
hourmeter, clock, fuel gauge, gear position and
EFI function |
|
| Lighting |
Dual 35W Halogen
multireflector headlights & 21/5W brake light |
| Color |
Steel Blue; Hunter Green; Red;
Realtree® AP HD™ Camouflage |
