2014 Suzuki KingQuad 400 FSi Utility
ATV Specifications
|
|
|
2014
Suzuki KingQuad 400 FSi
Utility ATV Camo |

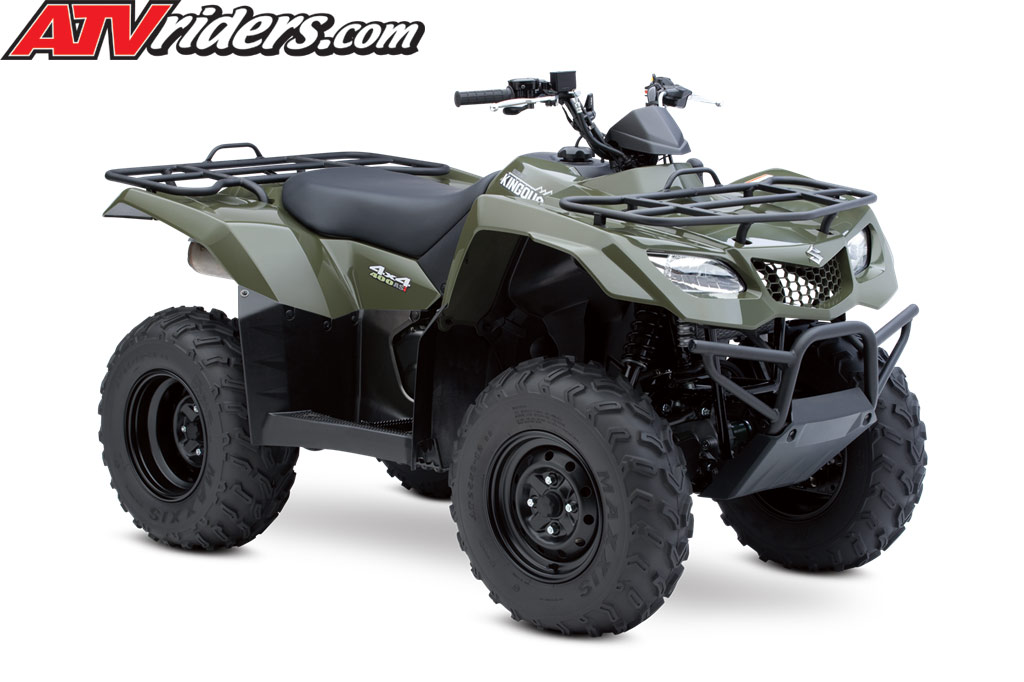

2014
Suzuki KingQuad 400 FSi
Utility ATV Green |
2014 Suzuki KingQuad 400 FSi Utility
ATV Specifications:
|
| Engine |
| Bore Stroke |
82.0 mm (3.228 in) x 71.2 mm (2.803 in) |
| Engine |
376cc, 4-stroke, Air-cooled with SACS, single cylinder, OHC |
| Compression Ratio |
9.0 : 1 |
| Starter |
Electric |
| Lubrication |
Wet Sump |
| Ignition |
Electronic ignition (transistorized) |
| Fuel System |
Suzuki fuel injection |
| CHASSIS: |
|
| 4WD |
4WD |
| Overall Length |
2060 mm (81.0 in) |
| Overall Width |
1145 mm (45.1 in) |
| Wheelbase |
1270 mm (50.0 in) |
| Ground Clearance |
250 mm (9.8 in) |
| Seat Height |
840 mm (33.1 in) |
|
Curb Weight |
285 kg (628 lbs) |
| Transmission |
Automatic variable ratio (V-belt), with high-/low-range, and reverse |
| Final Drive |
Shaft drive |
| Suspension Front |
Independent, double wishbone, coil spring, oil damped |
| Suspension Rear |
Swingarm type, coil spring, oil damped |
| Brakes Front |
Disc brake, twin |
| Brakes Rear |
Drum brake |
| Tires Front |
AT25 x 8-12, tubeless |
| Tires Rear |
AT25 x 10-12, tubeless |
| Fuel Tank Capacity |
16.0 L (4.2 US gallons) |
| Color |
True Timber XD3 |
| WARRANTY: |
|
| Warranty |
12 month limited warranty. |
