2008 Kawasaki TERYX™ 750 4x4 NRA Outdoors Edition UTV

Navigation:

Std. / L.E. Teryx Model | Key Features | NRA Features | Specifications

Teryx 750 4x4 UTV Key Features:

First in class with a V-twin Sport performance with gas-charged rear shocks with reservoirs 26-inch Maxxis tires Sealed rear wet brake Ample 500-pound capacity cargo bed

Teryx 750 4x4 UTV Engine:

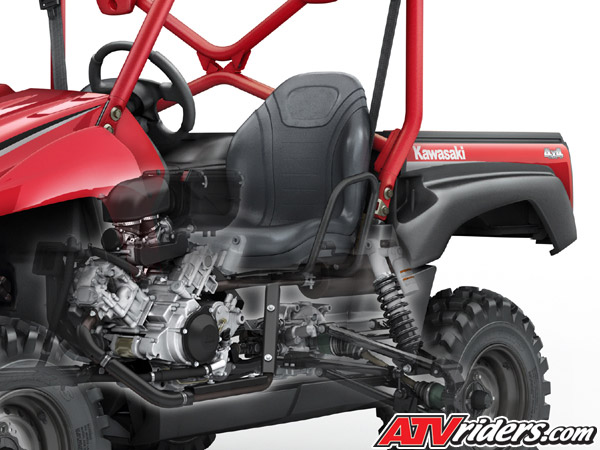

The 90-degree 749cc V-twin engine is the largest, most powerful engine in its class Closer look at the Tyrex 750 4x4 Side X Side Drivetrain Positioned mid-ship for optimum front/rear balance – good for power slides and cornering control Straight intake tracts and 34mm downdraft carburetors enhance power delivery throughout the rpm range Radiator is compact and placed high in the chassis for better protection against mud and debris Ducts located by the cargo bed direct cooling air to the engine Aluminum cylinders are Electrofusion-plated for light weight, long wear and excellent heat dispersion Engine can be started in any gear when the rear brake is applied Electronically controlled Kawasaki Engine Brake Control helps to slow the RSV when traversing steep down hills

Teryx 750 4x4 UTV Transmission/Selectable Four-wheel-drive:

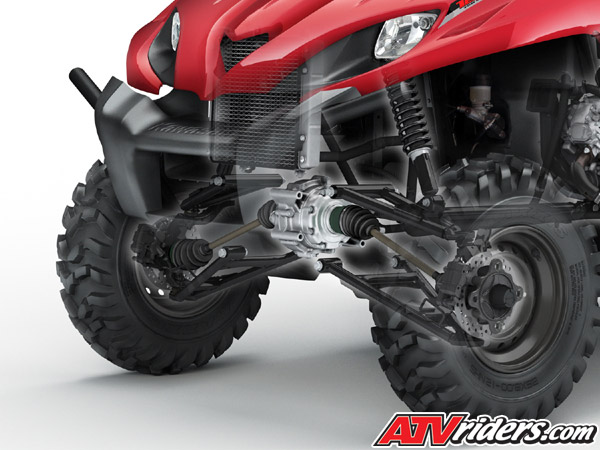

CVT features high and low ranges, plus reverse Two- or four-wheel-drive operation at the press of a button Combined with the engine power characteristics, provides instantaneous acceleration Rider can select two- or four-wheel-drive operation by pressing a button located on the dash Limited-slip front differential reduces steering effort under normal four-wheel drive operation, while Variable Front Differential Control permits rider to distribute torque equally to left and right front wheels for maximum traction via a hand lever Rear wheels are locked and always turning together for cornering control

Teryx 750 4x4 UTV Chassis:

Large-diameter thin-walled tubular steel frame Only RSV with integrated occupant protection First with sport performance-focused suspension – low-speed comfort not a main design priority Wide track provides excellent stability and chassis has 11.2 inches of ground clearance Long dual front A-arm suspension and narrow frame concept provides 7.5 inches of travel and features adjustable gas-charged Kayaba shocks Independent rear suspension provides the best balance of rider comfort and handling at high speeds, and adjustable gas-charged Kayaba shocks with reservoirs provides 7.25 inches of travel Chassis offers the right balance of bump absorption while limiting understeer Able to tackle corners in either a drift or grip style and operate beyond the limits of its rivals

Misc. Features:

Dual front 200mm disc brakes with two-piston 27mm calipers and Kawasaki’s sealed, oil-bathed, multi-disc rear brake system provide maximum stopping power in all conditions Front discs are recessed in wheels for protection from debris Good rough terrain performance and obstacle clearance with 26-inch Maxxis tires specially built for the Teryx 750 4x4 Tread design enables both controlled sliding and forward traction Bucket seats with retractable three-point seat belts Foot guards designed into the floor and body Padded steering wheel positioned low for better control Body work is made of high-gloss scratch resistant Thermo-Plastic Olefin Steel floor boards and engine guards for maximum protection Dual 40W headlights and dual taillights Cargo bed has 500 lb capacity, tie down hooks in all four corners and cargo net standard

Teryx 750 4x4 UTV NRA OUTDOORS Features:

Cargo bed gas assist Digital meter Camo dashboard with dual cup holders Camo Hard Top Camo wheels Half-Windshield Dual gun scabbards

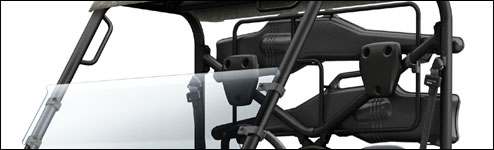

The NRA Outdoors Edition features a Half-Windshield and Dual Gun Scabbards

::CONTINUED::
