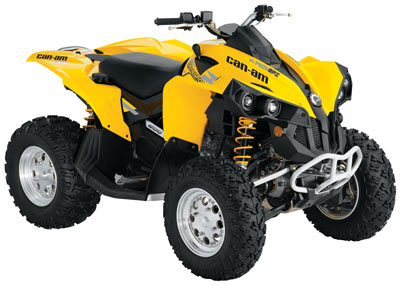

2009
Can-Am Renegade
500 EFI
4x4 Sport-Utility ATV
Renegade
500 Sport-Utility
ATV Specifications:
|
ENGINE |
| Type |
499.6cc,
V-twin, liquid-cooled, SOHC, 8-valve
(4-valve / cyl) |
| Bore
& Stroke |
82 x 47 mm |
| Fuel
Delivery |
46mm Throttle
Body, 2 Siemens VDO injectors |
| Starting
System |
Electric |
| Transmission |
CVT, sub-transmission
with high, low, park, neutral
& reverse |
| Drive
Train |
Selectable
2x4/4x4 shaft driven with Visco-Lok†
front differential |
CHASSIS |
Frame
|
SST |
| Front
Suspension Type |
RS-Type
Double A-arm, forged aluminum
upper arm/ Motion Control Shocks
|
| Travel |
8.5 in (216 mm) |
| Rear
Suspension Type |
RS-Type
TTI independent, Motion Control
shocks |
| Travel |
9 in (228.6 mm) |
| Front
Brake |
2
hydraulic discs |
| Rear
Brake |
1 inboard hydraulic
disc |
| Tires
/Front |
ITP
Holeshot ATR 25 x 8 x 12 in |
| Tires
/Rear |
ITP Holeshot
ATR 25 x 10 x 12 in |
| Wheels |
Center-cast
aluminum |
DIMENSIONS |
| L
x W x H |
86 x 46 x 45
in (2,184 x 1,168 x 1,143 mm) |
Wheelbase
|
51
in (1,295 mm) |
| Dry
Weight |
607 lbs ( 275
kg) |
| Ground
Clearance |
11
in (305 mm) |
Seat
Height
|
34.5 in (877
mm) |
| Rack
Capacity |
Rear:
35 lbs (16 kg) |
| Towing
Capacity |
1,300 lbs (590
kg) |
| Fuel
Capacity |
5.3
US gal (20L) |
FEATURES |
| Instrumentation |
Multi-function
gauge: Speedometer, tachometer,
odometer, trip and hourmeter,
fuel, gear position, 4x4 indicator,
diagnostics, auto shut off |
| Anti-theft |
D.E.S.S.
(digital encoded security system) |
| Storage |
Rear storage
1 US gal (3.7L) |
| Electrical |
Prewired
for winch |
| Lighting |
4 fender mounted
Projector Beam headlamps (60W)
with tail light / brake light |
| DC
Outlet |
Lighter-type
in console, Standard connector
at the back (15A) |
| Color |
Yellow, Viper
Red |
