Rotax 800R V-Twin engine
– This 80º V-twin
is the most powerful in its class,
yet retains its smooth power delivery.
The liquid-cooled, single overhead
cam powerplant has four valves per
cylinder and is fed by a 46mm throttle
body and two VDO Siemens fuel injectors.
The sophisticated electronic fuel
injection system automatically keeps
the 500 EFI engine’s performance
at its peak, regardless of temperature
or altitude. The progressive throttle
ensures power is manageable whether
in precise rock crawling or opening
it up on the straights.
Visco-Lok front differential
– This Can-Am-exclusive
technology progressively transfers
power from a slipping front wheel
to the gripping one – totally
automatically. There are no buttons
to push, no levers to pull, and
makes the Renegade easy to steer
when navigating nasty surfaces.
No speed or rev limiter means it
is true all-wheel drive.
 |
Renegade
500 RS-Type TTI Rear ATV
Suspension
|
RS-Type front suspension –
Developed with top racers, this double
A-arm set-up delivers precise handling
and control in even the roughest stuff.
8.5 inches (21.6 cm) of travel means great
ride quality. Dive-control geometry tightly
controls the roll-center, especially entering
corners. Aluminum upper A-arm and mounts
reduce weight.

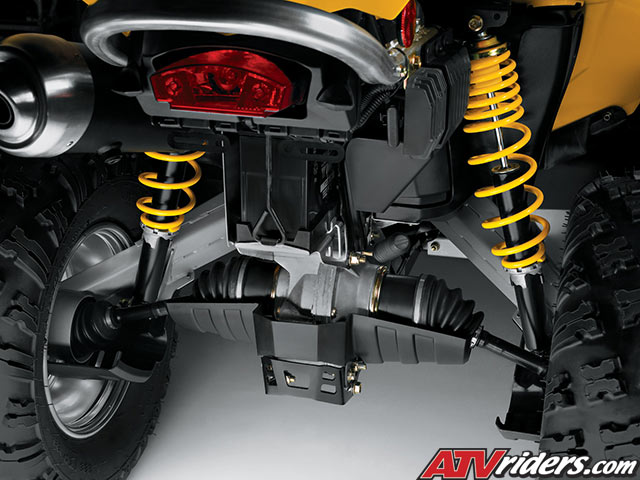

RS-Type TTI rear suspension
– The simplest rear
ATV suspension (75% fewer parts
than competitive designs), with
a trailing arm on a single pivot.
TTI ensures zero scrub for a more
stable ride, especially in bumpy
terrain. 9 inches (22.9 cm) of race-developed
travel and damping.
Motion Control Shocks
– Provide a smooth
ride with machine-specific calibration
to soak up both high- and low-speed
bumps.
Center-cast aluminum wheels
– Rolled edge rims of rolled
aluminum are mated with sharply-styled
cast aluminum centres – the best
of both worlds.
Holeshot ATR Tires –
Optimal grip, especially in corners, thanks
to a cross-country pattern and six-ply
sidewalls.
Multi-function digital gauge
– Its compact size belies
the large number of features. Easy to
read.
Independent front and
rear braking systems –
For improved control and ride feel.
Quad 60W projector beam headlights
– For exceptional nighttime
visibility.
