2009 Arctic Cat 1000 H2 EFI
Utility ATV Info - Continued
Arctic
Cat 1000 H2 ATV Engine:
|
-
 |
Arctic
Cat Thunder Cat 1000 H2 ATV

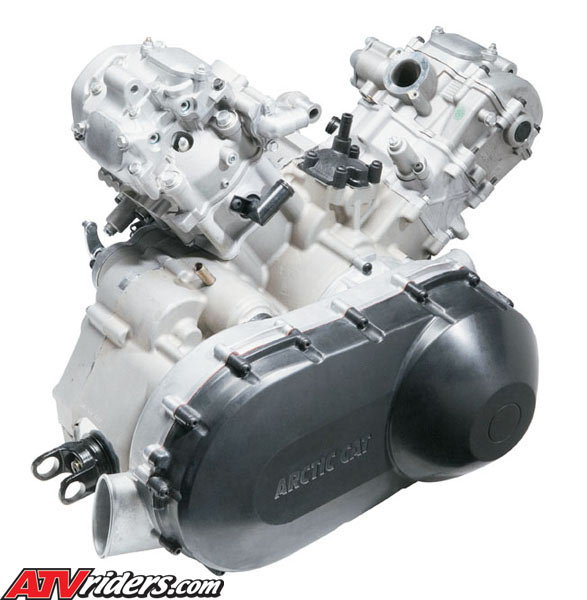

Engine
|
951cc, EFI, SOHC 4-stroke,
4-valve, V-twin, liquid cooled engine
- The “H”
in H2 stands for Hemi. The hemispherical-shaped
head creates more complete, more efficient
combustion for performance-winning power
- An Arctic Cat produced
performance engine built in the state-of-the-art
St. Cloud manufacturing facility
- Electronic Fuel Injection
aids in perfect starting no matter what
altitude or temperature changes.
- Liquid cooling system
with high-capacity radiator and thermostatically-controlled
cooling fan provides consistent engine
operating temperatures
- The Duramatic Automatic
Transmission has a long-life maintenance-free
belt that withstands the harshest of conditions.
|
Arctic
Cat 1000 H2 ATV Chassis/Suspension:
|
-
 |
Arctic
Cat Thunder Cat 1000 H2 ATV

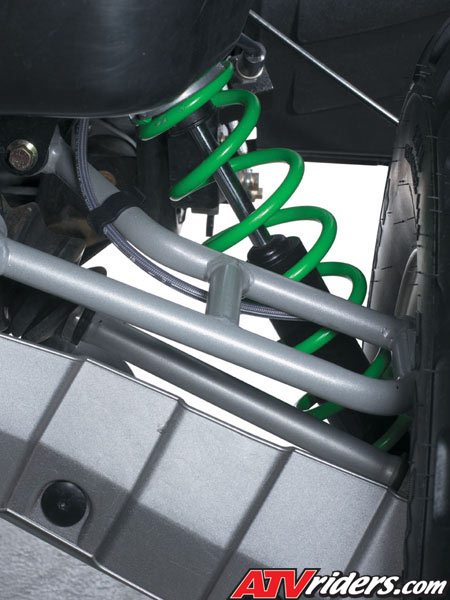

Rear Suspension
|
Machined Aluminum
Wheels
- All new 12” machined aluminum
wheel design has an optimized scrub radius
minimizing the rider steering effort.
- Positive Shifting
- A new shift detent spring in the lever
linkage allows for improved positive shifting
- New Headlight
Bulb Sockets - The right-hand
headlight bulb sockets have been redesigned
to eliminate the bulb popping out, decreasing
the chance of the headlight housing filling
with moisture.
- Fully Independent
Suspension (FIS) How it works with or
without a swaybar - Arctic Cat
ATVs have an optional sway bar available
as an accessory purchase through your
authorized dealer. Similar to any off-road
4x4 vehicle, eliminating the sway bar,
lets the 10” of front or rear Fully
Independent Suspension articulate through
the full range of suspension travel. This
increased articulation provides full tire
contact in all types of off-camber terrain.
The addition of the sway bar will impact
the traction capabilities; however, it
will enhance flatter cornering in aggressive
trail riding
- Performance Tuned
Chassis - When you sit on the
Thundercat, it will squat roughly 2 inches
(depending on rider size) while maintaining
Arctic Cat’s class leading 11”
of
ground clearance and 10” of suspension
travel. This ride-in calibration lowers
center of gravity for precise cornering
- Performance Minded
Ergonomics - The seat on the
Thundercat has been lowered approximately
one inch to reduce the riders center of
gravity along with giving an improved
sense of sitting “In” the
machine instead of “On” it.
- Industry Leading
Ground Clearance - 11”
of ground clearance enhances the ability
to navigate through mud or over large
rocks, logs, and other objects encountered
in rough terrain
- Large Capacity
SpeedRacks - Industry leading
weight capacity and overall cargo carrying
surface area allows 100 lb carrying capacity
on the front rack and 200 lbs. on the
rear
-
 |

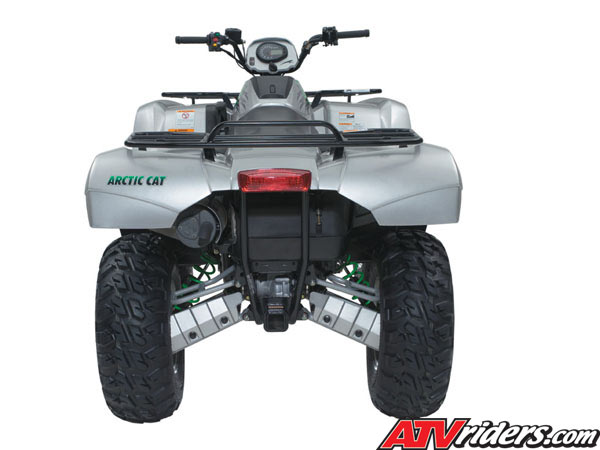

Rear
view of Arctic Cat Thunder Cat
1000 H2 ATV
|
SpeedRack Technology:
• Allows very quick installation
and removal of a wide variety of Arctic
Cat exclusive accessories without the
need for tools, bloody knuckles or swearing
• SpeedRack and its accessories
add value to the machine and also enhance
the efficiency of your hunting, fishing,
farming or utility chores
- 2-Inch Automotive
Style Receiver Hitch - This feature
allows the consumer to remove the hitch
from their 2” automotive receiver
and install it into the ATV’s receiver
hitch
- Floating Hydraulic
Disc Brakes - Low maintenance,
positive stopping power in either dry
or wet conditions
- Adjustable Shocks
- Set the spring preload (5 rear positions,
5 front positions) on the shocks to tailor
the ride to individual riding styles,
terrains and loads Electric Shift 2-to
4-Wheel Drive with new Electric Front
Locking
- Differential
- Full-lock front differential transfers
engine torque to both front wheels when
selected for added traction with an all
new electronic rocker switch located on
the gauge pod while 4wd/2wd switch is
located on right-side handlebar for quick,
convenient shifting in-and-out of four-wheel
drive.
- Spike Load Dampener
- To handle the 1000 H2’s enormous
power output, Arctic Cat has engineered
a rear differential to deliver maximum
power to the tires with minimum driveline
wear.
|
Additional
1000 H2 ATV Features:
|
- Stylish SE -
All SE models have an all-new
machined aluminum wheel and are available
in Competition Silver painted body panels.
- Digital Instrument
Pod - Displays up to 14 critical
operation information indicators including:
clock/hour meter, fuel level, mode button,
set/reset button, odometer/trip, gear
position, speedometer/tachometer, needle
display, differential lock, drive select,
high beam, battery condition, temperature
and oil pressure
- Tires - When
your utility quad needs better acceleration
and overall performance, the Razr 4-Speed
is your answer. The lightweight design
and radial construction provide ideal
traction in all conditions - without adding
extra weight. Designed specifically for
the Thundercat with a stiffer sidewall,
the 25x8R12 front and 25x10R12 rear are
the perfect tire for Utility Quad riders
looking for more trail performance. The
Aggressive tread pattern with radial construction,
breaks the barrier between Sport and Lightweight
design reducing steering effort for quick
handling.
- Color Options
- Competition Silver Metallic
|
