2009 Arctic Cat Prowler XTX
700 H1 EFI UTV - Continued
Prowler
XTX 700 H1 Side
X Side Engine:
|
- Engine - 695cc,
EFI, DOHC 4-stroke, 4-valve, single-cylinder,
liquid cooled engine
- Arctic Cat-Built
- An Arctic Cat produced performance-based
engine built in the state-of-the-art St.
Cloud manufacturing facility
- EFI
- Electronic Fuel Injection aids in perfect
starting no matter what altitude or temperature
changes.
- Cooling
- Liquid cooling system with high-capacity
radiator and thermostatically-controlled
cooling fan provides consistent engine
operating temperatures
- Transmission
- Duramatic Automatic Transmission with
long life maintenance-free belt
- Air Intake
- Quarter wave intake tuner cancels out
unwanted sounds reducing air intake decibels
6db to the riders ear.
- Rigid Airbox
- Also reduces sound along with exhaust
and muffler – also increases low
end torque. The muffler has a longer head
pipe and longer/larger diameter mild
steel muffler.
- Clutch Ducts
- Clutch air intake has increased cooling
and flow
|
Prowler
XTX
700 H1
Side-X-Side Chassis/Suspension:
|
-
 |
Arctic
Cat XTX 700 H1 Side X Side
|
Cockpit
- Dual bucket seats with center console
allow you easy access to the conveniently
located dual plug 12V accessory outlets
in the dashboard, glovebox with storage
door, or molded tool kit, located underneath
the passenger seat. Prowler floors sit
higher to protect riders feet from the
elements when
forging water crossings or muddy terrain
- Plastic Fascia
Bumper - Sport bumper and plastic
fascia design on the XTX add enhanced
styling.
- Easier Driver/Passenger
Entry/Departure - The armrests,
or side canopy supports have a large radius
for ease of entry and departure of vehicle,
while the seat belts have large button
for easier passenger and driver removal
- Suspension
- The Prowler leads the way with 12.5”
of ground clearance and 10” of suspension
travel front and rear to clear the gnarliest
of obstacles
- Brakes
- Foot operated front and rear disk brakes
provide positive stopping power, and also
has a foot operated mechanical parking
brake
- Large Storage
and Hauling Capacities - A fully
composite rear cargo box has a 600lb.
hauling capacity, resists rust, denting
and also acts as a dump box with a pull
of a lever located behind the driver and
passenger seats. A large under hood storage
compartment can hold 25 lbs. of gear or
doubles as a cooler that holds ice. A
dash mounted glovebox with door, provides

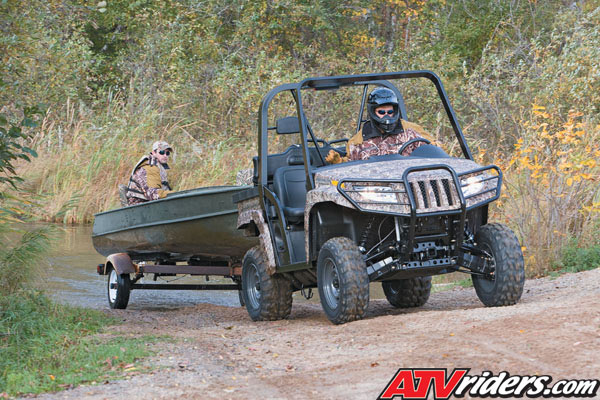

additional storage. The Prowler is rated
for a 1500lb towing capacity and also
has a single hand-operated tailgate latch
like a pickup truck for easy bed access
- Rims and Tires
- All-new Cast aluminum 14” wheels
are standard (Camo has 14” Steel),
with 26x8R14 Goodyear MTR front tires
and 26x11R14 Goodyear MTR’s in the
rear provide superb traction in all conditions
- Digital Gauges
- Displays 14 critical operation indicators
including: MPH, odometer, dual trip, hours,
clock, fuel level and gear position, also
has red display for nighttime readability
- 4WD Controls
- The Prowler cockpit is laid out so that
everything is at your fingertips. 2-wheel
to 4-wheel drive is electrically selectable
with a new all-in-one 2wd/4wd/Diff Lock
rocker switch button for quick engagement
shifting. A reverse override button is
located on the center console for quicker
reverse speeds. A rack and pinion steering
system provides easy turning in 2- and
4-wheel drive applications
- 2-Inch Automotive
Style Receiver Hitch - This feature
allows the consumer to remove the hitch
from their 2” automotive receiver
and install it into the Prowler’s
receiver hitch located on the front and
the rear of the vehicle
- Tool Kit
- Conveniently molded into the passenger
side seat for easy access and secure fit
|
Additional
Prowler XTX
700 H1 EFI
UTV Features:
|
- Camo - Advantage®
MAX-4 Camo was designed to give hunters
maximum effectiveness in open terrain.
The pattern incorporates cattails, millet,
milo, corn stalks,
dead sunflowers, oak and maple leaves,
cedar and oak limbs, plus a variety of
other plant life into the largest camouflage
artwork on the market. It melts into marshes,
grasslands, deserts, croplands - even
the open canopy of a treetop. It's ideal
for deer, turkey, waterfowl and western
big game hunting.
-
 |
Arctic
Cat XTX 700 H1 UTV
|
Limited Edition
- 700 XTX comes in a Limited
Edition with all the great features of
the standard model, but additionally has
a flat bed with stake sides, 3,000lb Warn
Winch, 2” Receiver Hitch w/ball,
Cat Black Metallic Painted bodywork, 14”
Aluminum wheels.
- Turf Friendly
- Turf Saver Auto Locking rear
differential – When wheel slip is
sensed, both rear wheels lock for improved
traction. Otherwise, the differential
is open. Very Turf friendly – Open
diff has a lightened steering effort on
concrete or hard packed surfaces.
- Rear View Mirror
(Except Camo) - An easy way to
see what the competition is doing behind
you.
- Tilt Steering
- 5 position – lever activated
for easier Entry/Departure and leg room
- Frame Protection
- Frame cover underneath running
board/entry areas – Helps styling
and aids in frame protection as well as
keep mud and debris from entering and
collecting on skidplates
- Color - Steel
Blue (painted), Max 4 Camo or Cat Black
Metallic (LE)
|
