2015

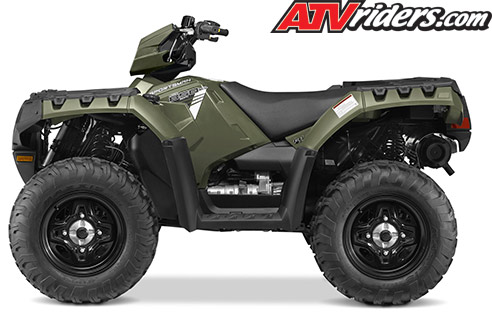

Polaris Sportsman 850 Specs |
| Engine
Type |
4-Stroke
SOHC Twin Cylinder |
| Displacement |
850cc |
| Fuel
System |
Electronic
Fuel Injection |
| Cooling |
Liquid |
| Transmission/Final
Drive |
Automatic
PVT P/R/N/L/H; Sha |
| Drive
System |
On-Demand True AWD/2WD |
Engine Braking System/
Active Descent Control |
Standard/Standard |
| Front
Suspension |
Dual A-Arm 9" (22.9 cm) Travel |
| Rear
Suspension |
Dual A-Arm, Rolled 10.25" (26 cm) Travel |
| Front/Rear
Brakes |
Single Lever 4-Wheel Hydraulic
Disk with Hydraulic Rear Foot
Brak |
| Parking
Brake |
Park in Transmission/Lockable
Hand Leve |
| Front
Tires |
26 x 8-14; Maxxis |
| Rear
Tires |
26 x 10-14; Maxxis |
| Wheels |
Stamped Steel |
| Wheelbase |
53" (134.6 cm |
| Dry
Weight |
759 lb (345 kg) |
Overall Vehicle Size
(L x W x H) |
83.25 x 47.6 x 50.75"
(211.4 x 120.9 x 128.9 cm) |
| Ground
Clearance |
11" (28 cm) |
| Seat
Height |
35" (89 cm) |
| Fuel
Capacity |
5.25 gal (19.9 L |
Bed Box Dimensions
(L x W x H) |
N/A |
| Front/Rear
Rack Box Capacity |
120 lb (55 kg)/ 240 lb (110 kg) |
| Payload
Capacity |
575 lbs (261 kg) |
| Hitch
Towing Rating |
1,500
lb (680.4 kg) |
| Unbraked
Trailer Towing Capacity |
1,914
lb. |
| Hitch/Type |
Standard/2"
Receiver |
| Cargo
System |
Lock
& Ride |
| Lighting |
Triple 50w High Beam, Dual 50w Low Beam Headlights; Dual Brakelights/ Taillights |
| Electronic Power Steering |
N/A |
| Instrumentation |
Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Time, Diagnostic Indicator, Gear Indicator, Fuel Gauge, Hi-Temp/ Low-Batt Lights, DC Outlet |
| Colors |
White Lightning, Sage Green, Polaris Pursuit Camo |
