With all this HP Polaris needed a new High
Performance chassis to put all that power to
the ground. The RZR XP 900 has a completely
new high strength steel frame that utilized
dual a-arms up front and an industry first three
link trailing arm rear suspension. This new
chassis boasts an industry leading 13.5 inches
front wheel travel, 14 inches rear wheel travel
and 13 inches of ground clearance at ride height.
|
|

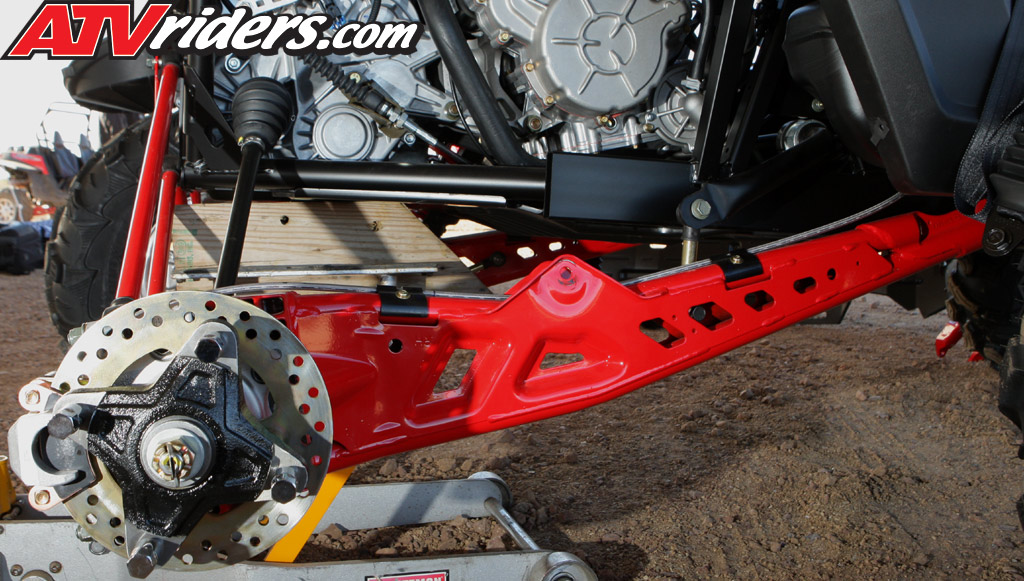

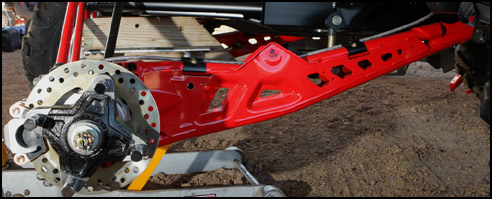

The
Polaris RZR XP 900 features an industry
first three link trailing arm with 14"
of rear wheel travel & 13.5"
of ground clearance
|
With the capabilities of this new XP 900 Polaris
knew a high performance electrical system would
be required, so the stator is capable of producing
an industry leading 750 watts of power at 5000

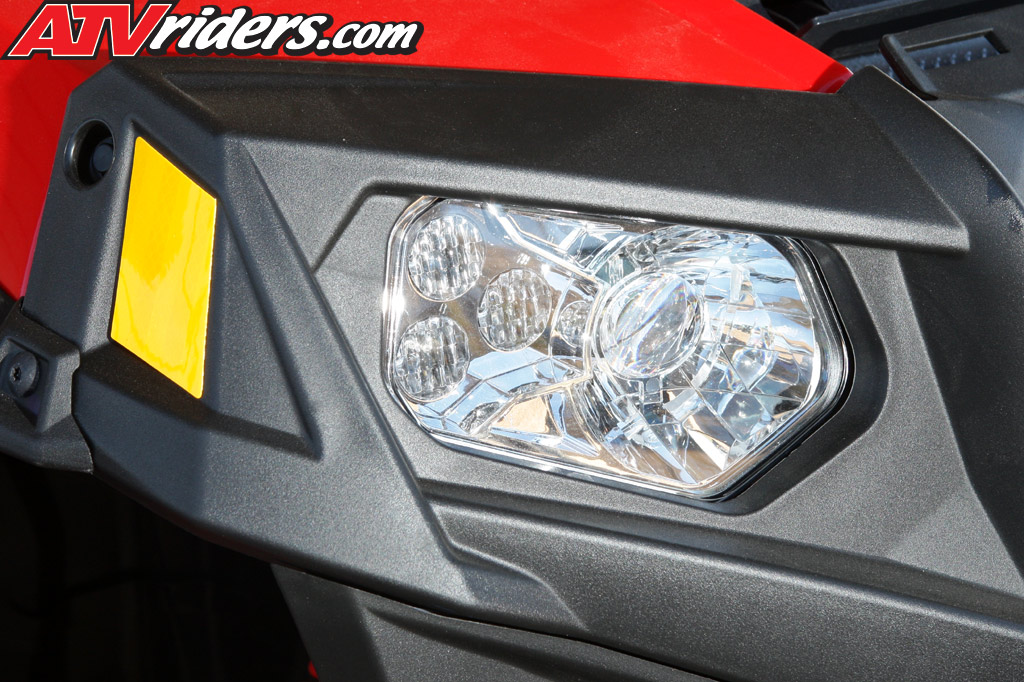

rpm and 500 watts at idle. Polaris has also redesigned
the head lights to utilize high performance low
wattage LED bulbs that feature a high and low
beam setting, which provide a more natural white
light for improved visibility after dark
Polaris also obviously made ease of maintenance
a priority on the RZR XP 900 compared to previous
RZR models. The oil level and the air filter
are easily accessible through an access panel
in the rear bed. The CVT and engine air inlets
are also located high up in the chassis and
provide good water protection. Air filtration
is provide by a large flat panel paper media
filter that has 90 percent more surface area
than the filter used in the RZR 800.
| |
|

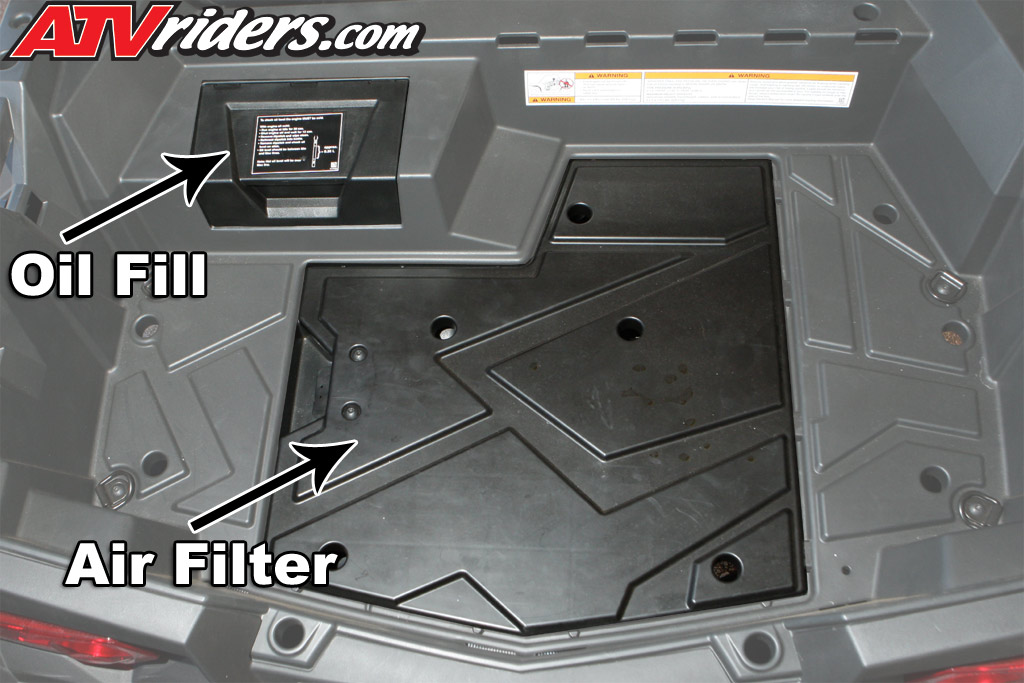

Oil
level & Air Filter are easily accessed
under panels in the bed of the XP
|

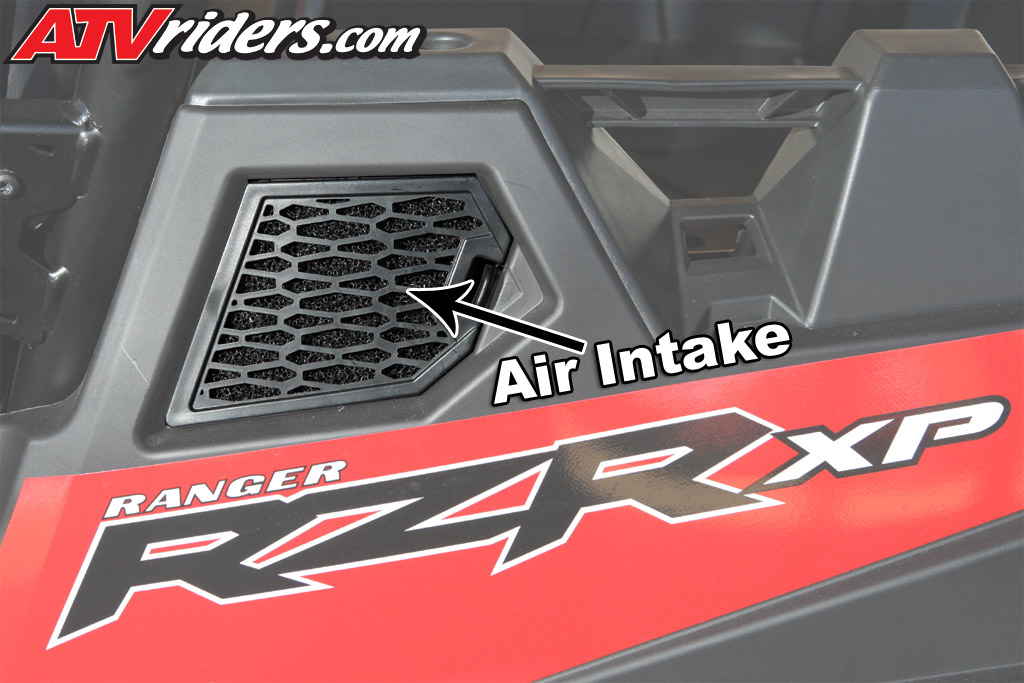

The
Air Intake & CVT Breather are located
up high in the side panels of the fenders |
The CVT belt cover can be removed easily without
removing any other components allowing for quick
belt and CVT maintenance. Many suspension pivot
points feature long lasting spherical heim bearings
instead of bushings. Radiator coolant levels
and brake fluid levels can be checked by easily
removing the front hood panel
| |
|

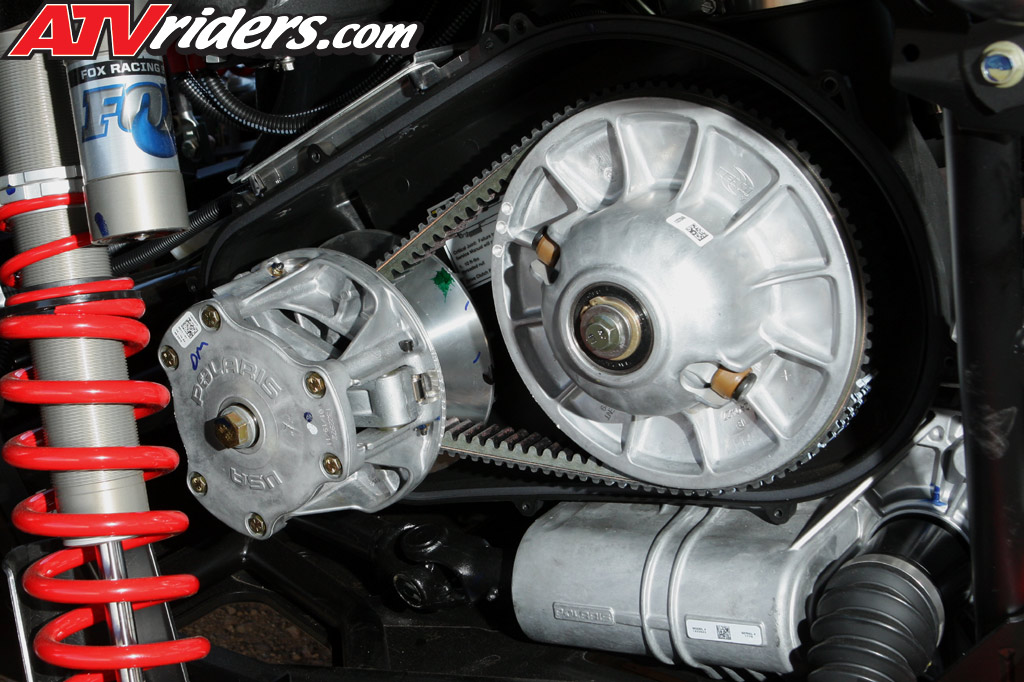

The
CVT Belt is easy to access under the
rear fender
|

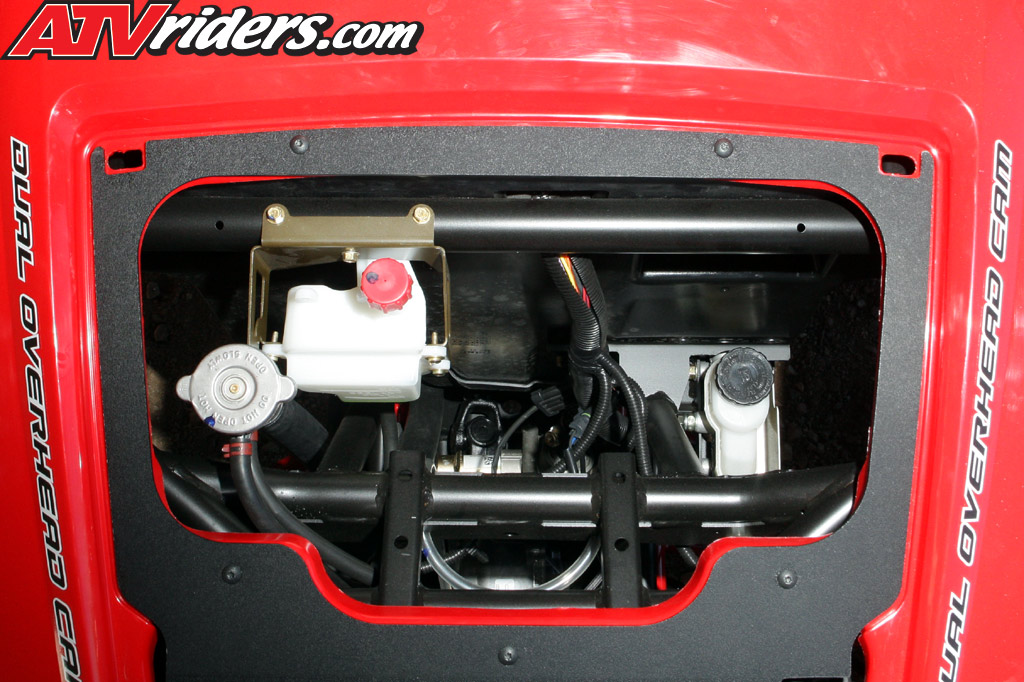

The
radiator fill & brake fluid fill are
under the front hood |
