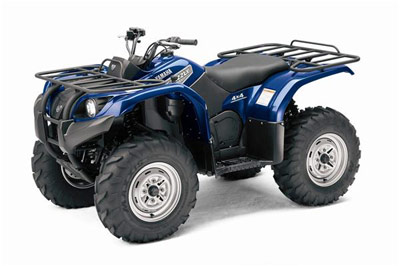

2007 Yamaha Grizzly 450 Auto.
4x4 Utility ATV - Specifications
Grizzly
450 4x4 ATV Specifications:
|
| Type |
421cc liquid-cooled
w/fan, SOHC 4-stroke single |
|
| Bore
x Stroke |
84.5mm x 75mm |
|
| Compression
Ratio |
10:1 |
|
| Carburetion |
Mikuni 33mm BSR |
|
| Ignition |
DC-CDI |
|
| Starting
System |
Electric w/auxiliary
pull |
|
| Transmission |
Yamaha Ultramatic®
V-belt/H, L, N, R, P |
|
| Engine
Braking |
All wheel |
|
| Drive
Train |
Yamaha On-Command®
push button 3-way locking differential, 2WD, 4WD,
locked 4WD; shaft |
| |
|
| |
| Suspension/Front |
Independent double
wishbone, 6.3" travel w/5-way preload adjustment |
|
| Suspension/Rear |
Independent double
wishbone, 7.1" travel w/5-way preload adjustment |
|
| Brakes/Front |
Dual hydraulic
discs |
|
| Brakes/Rear |
Hydraulic disc |
|
| Tires/Front |
AT25x8-12 |
|
| Tires/Rear |
AT25x10-12 |
| |
|
| Length |
78.5" x 43.0"
x 44.1" |
|
| Seat
Height |
32.7" |
|
| Wheelbase |
48.5" |
|
| Turning
Radius |
118" |
|
| Ground
Clearance |
10.8" |
|
| Fuel
Capacity |
4.0 gal. |
|
| Dry Weight |
591 lb. |
|
| Rack
Capacity |
88 lb. front/176
lb. rear |
|
| Towing
Capacity |
1102 lb. |
| |
|
| Instrumentation |
Digital LCD multifunction
display, speedo, odo, dual trip, hour meter, clock,
gear position & fuel gauge |
|
| Lighting |
Dual 30W Krypton
multireflector headlights & 21/5W brake light |
|
| |
