2014 Yamaha Viking 700 Special Edition Features
 |
2014 Yamaha Viking 700 Special Edition |

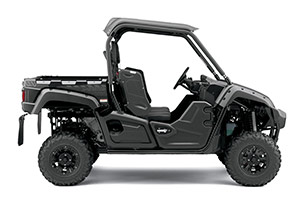

Yamaha Viking 700 SE
Key Features
|
- The Special Edition Viking features Tactical Flat
Black paint and comes fully-equipped with a sun
top, overfenders, mud flaps, an under-seat storage
box, bed rail accessory mounts and aggressive
Black aluminum cast wheels.
- The all-new Viking is ready to conquer whatever
comes its way with our most powerful 686cc, liquidcooled,
fuel injected, SOHC power plant. This new
engine delivers strong low-end acceleration and
pulls hard through the rpm range to deliver excellent
power delivery for getting the job done or when
hitting the trails.
- The Viking features a large-capacity air intake
system that improves overall engine performance.
The no tools air cleaner box is accessible from inside
the cabin for quick and easy serviceability.
- Ultramatic® transmission with dual-range (Hi/Lo)
drive and reverse is the most advanced drive system
available. An automatic centrifugal clutch maintains
constant belt tension for reduced belt wear and uses
a sprag clutch for all-wheel downhill engine braking.
- Industry-exclusive three-position On-Command
4WD system lets you dial between 2WD, limited-slip
4WD and fully locked differential 4WD.
- This true 3-person machine achieves driver and
passenger comfort with a handhold, padded
head rests, and 3-point seat belts for all riders.
The superior seating position, adjustable driver’s
seat, and the middle seat set back 5 degrees, provide
unmatched comfort that all riders will appreciate.
Yamaha’s proven electric power steering technology
further reduces fatigue and strain on the driver.
- The chassis design includes a convenient
pass-through floor for greater ease of on-board
movement, making it possible to enter and exit the
vehicle from either side.
- The rear cargo bed is made of steel and is designed
with a flat floor for the ability to load a full sized
pallet for maximum load capacity.
|
Yamaha Viking 700 SE Engine
|
- The Viking is equipped with Yamaha’s most powerful 686cc
engine with a broad, usable powerband. Four-valve head with
10.0:1 compression delivers optimum torque for virtually any
workload, and up to a 30% gain in fuel efficiency.
- Electronic fuel injection ensures peak performance in nearly all
conditions and elevations, along with instantaneous cold starts.
- Consistent Engine braking makes the Viking a lot more enjoyable
to drive giving you the confidence to tackle any project or terrain.
- Large-capacity air intake system contributes to the engine’s
overall power development.
- New air injection system burns the un-combusted elements in
the exhaust, resulting in even further reduced emissions.
- Specially designed drive system air intake helps prevent
overheating and assists in keeping water and debris from
entering the drive case.
- Convenient dash-mounted gated shift lever (L/H/N/R) provides
simple Ultramatic transmission operation.
|
Yamaha Viking 700 SE
Chassis/Suspension
|
- Yamaha’s proven electric power steering system is available on
the Viking for excellent handling over all kinds of terrain.
- 11.8-inch ground clearance delivers maximum underbelly
protection while enhancing terrainability.
- Large diameter front and rear wheel disc brakes provide
unsurpassed stopping power, and the dash-mounted parking
brake is simple and convenient to use.
- Standard center-mounted, heavy-duty 2-inch receiver-style hitch
can tow up to 1500 pounds.
- Tough, rotomolded doors help keep mud, water and dirt on the
trail where they belong.
- Stamped steel dump bed is rated to haul 600 pounds of gear,
with two simple, yet proven latching levers on the left and right
for maximum durability. In the bed are four standard tie-down
hooks to help make sure cargo is strapped down securely.
- Cargo bed can be unlatched and tilted from either side when
needed for ease of unloading cargo.
|
Yamaha Viking 700 SE Additional
Features |
- The engine is located under the cargo bed and can be easily
accessed when the bed is lifted.
- The seat layout is comfortable and versatile for three people.
Padded head rests are included and the middle seat is set back
for both driver and passenger comfort. The pass-through floor
provides on-board ease of movement for getting in and out of the
vehicle from either side.
- • Digital instrument panel boasts multifunction LCD display with
speedometer, odometer, dual tripmeter, hour meter, 4WD status,
transmission position, clock and fuel gauge.
- • Full under body Steel skid plates under the frame provides
protection from rocks and ruts and helps prevent the Viking from
getting hung up on rocks and stumps.
- • Center hood access for battery and other electrical components
ease maintenance.
- • Latching glove box is included to store smaller items such as cell
phones, wallets, etc.
- • Dash-mounted parking brake for driver convenience.
- • The Viking width minimizes row crop damage.
- • With the roomiest cabin in its class and a driver’s seat and passenger
handhold that are adjustable to maximize comfort and to
accommodate the widest range of appropriately sized operators
and passengers.
|
www.Yamaha-Motor.com
|
