2013 Yamaha Raptor 90 Mini ATV - Specifications

NAVIGATION

Introduction | Specifications

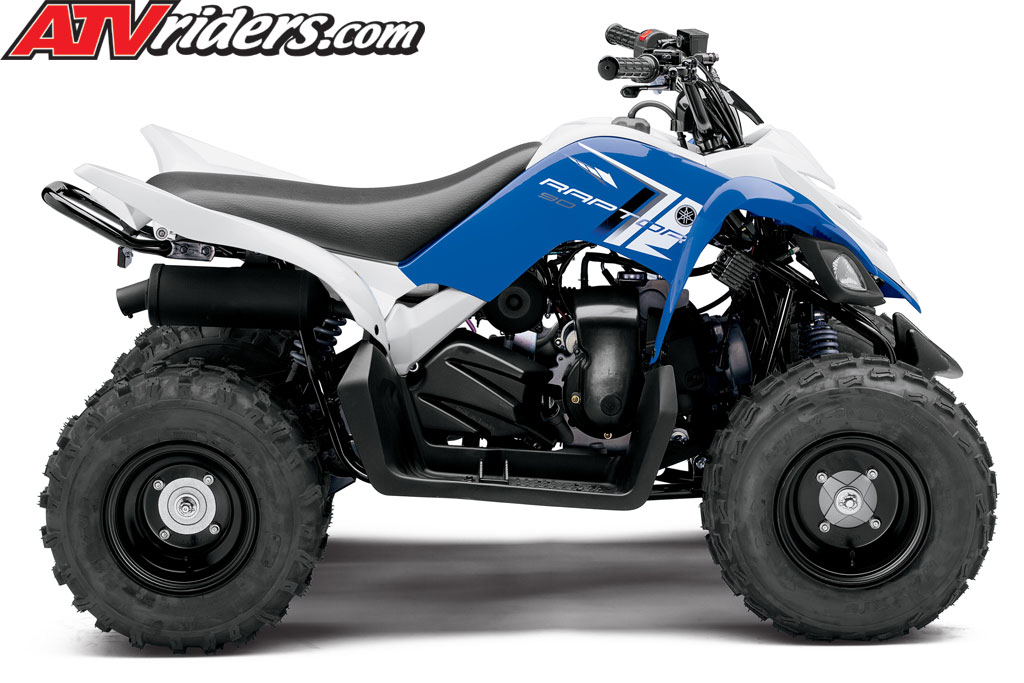

2013 Yamaha Raptor 90 Youth ATV - Yamaha Blue / White	2013 Yamaha Raptor 90 Youth ATV - White w/ choice of graphics

Yamaha Raptor 90 Mini ATV Specifications:

Engine
Type	88cc, 4-Stroke Single, Air Cooled, SOHC

Bore x Stroke	47mm x 51mm

Compression Ratio	10.2:1

Carburetion	SVR 22mm

Ignition	CDI

Starting System	Electric

Transmission	V-belt Automatic

Drive Train	2WD; Chain

Chassis

Suspension/Front	Independent Double Wishbone, 4.4” w/ 5-way Preload Adjustment.

Suspension/Rear	Swing Arm, 3.3” w/ 5-way Preload Adjustment.

Brakes/Front	Dual sealed drum

Brakes/Rear	Hydraulic Disc

Tires/Front	AT18 x 7-8

Tires/Rear	AT18 x 9-8

Dimensions
Length	58.7”

Width	34.8”

Height	35.8”

Seat Height	25.7”

Wheelbase	39.8"

Ground Clearance	3.9"

Fuel Capacity	1.3 Gallons

Dry Weight	264 Lbs.

Other
Colors	Team Yamaha Blue/White; White w/ choice of graphics kit
Lighting	N/A
