2013 Yamaha Grizzly 550 Auto
4x4 Utility ATV - Specifications
|
2013 Yamaha

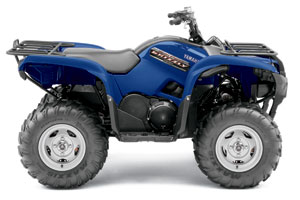

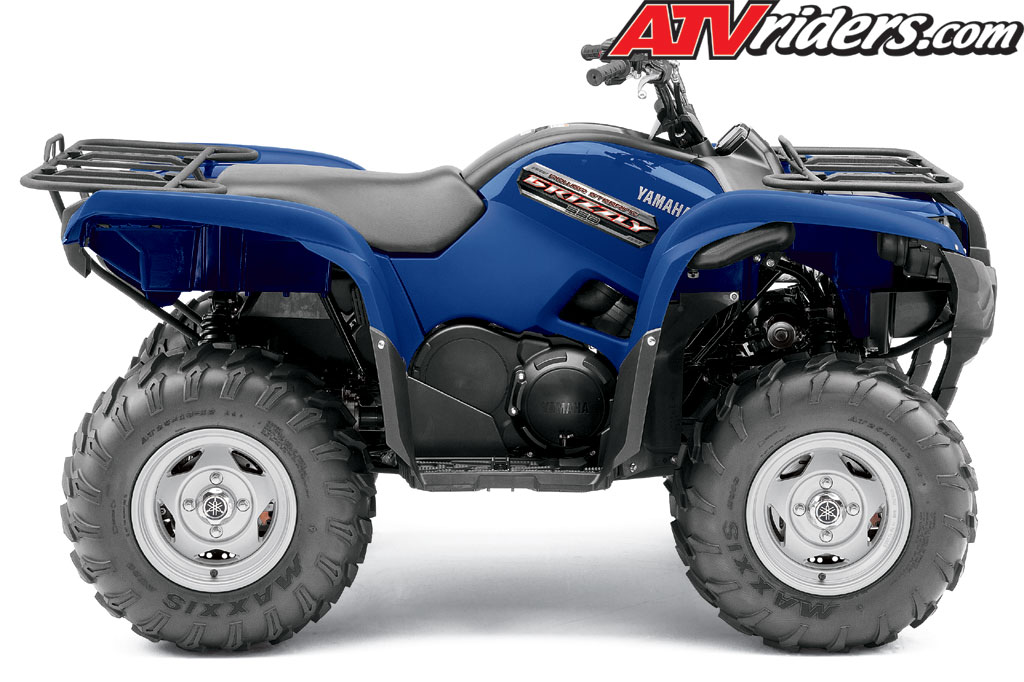

Grizzly 550 Auto 4x4 IRS Utility ATV
|
Yamaha
Grizzly 550 IRS 4x4 ATV Specifications:
|
| Type |
558cc, 4-Stroke
Single, Liquid Cooled w/ Fan, SOHC |
|
| Bore
x Stroke |
92mm x 84mm |
|
| Compression
Ratio |
9.3:1 |
|
| Carburetion |
Yamaha Fuel
Injection (YFI) , 40mm |
|
| Ignition |
32 Bit
ECU |
|
| Starting
System |
Electric |
|
| Transmission |
Yamaha Ultramatic®
V-belt/H, L, N, R, P |
|
| Engine
Braking |
All wheel |
|
| Drive
Train |
Yamaha On-Command®
push button 3-way locking differential, 2WD,
4WD, locked 4WD; shaft |
| |
|
| |
| Suspension/Front |
Independent
Double Wishbone, 7.1” w/ 5-way Preload
Adjustment. |
|
| Suspension/Rear |
Independent
Double Wishbone, 9.5” w/ 5-way Preload
Adjustment. |
|
| Brakes/Front |
Dual hydraulic
discs |
|
| Brakes/Rear |
Dual hydraulic
discs |
|
| Tires/Front |
AT25x8-12
| EPS Model: Aluminum Wheels |
|
| Tires/Rear |
AT25x10-12
| EPS Model: Aluminum Wheels
|
| |
|
LxWxH
|
81.3”x46.5”x48.8” |
|
| Seat
Height |
35.6” |
|
| Wheelbase |
49.2” |
|
| Turning
Radius |
126” |
|
| Ground
Clearance |
11.8” |
|
| Fuel
Capacity |
5.3 gal. |
|
| Wet
Weight |
648 lb. |
|
| Rack
Capacity |
99 lb. front
/ 187 lb. rear |
|
| Towing
Capacity |
1,322 Lbs. |
| |
|
| Instrumentation |
Digital
LCD Multi-function display. Speedo, Odo, Dual
Trip, Hour, Clock, Fuel, and Gear Position |
|
| Lighting |
Dual 35W
Halogen Multi-reflector Headlights & 21/5W
Brake light |
|
