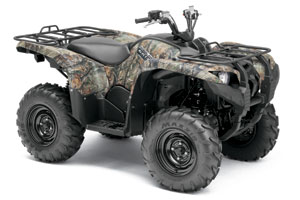

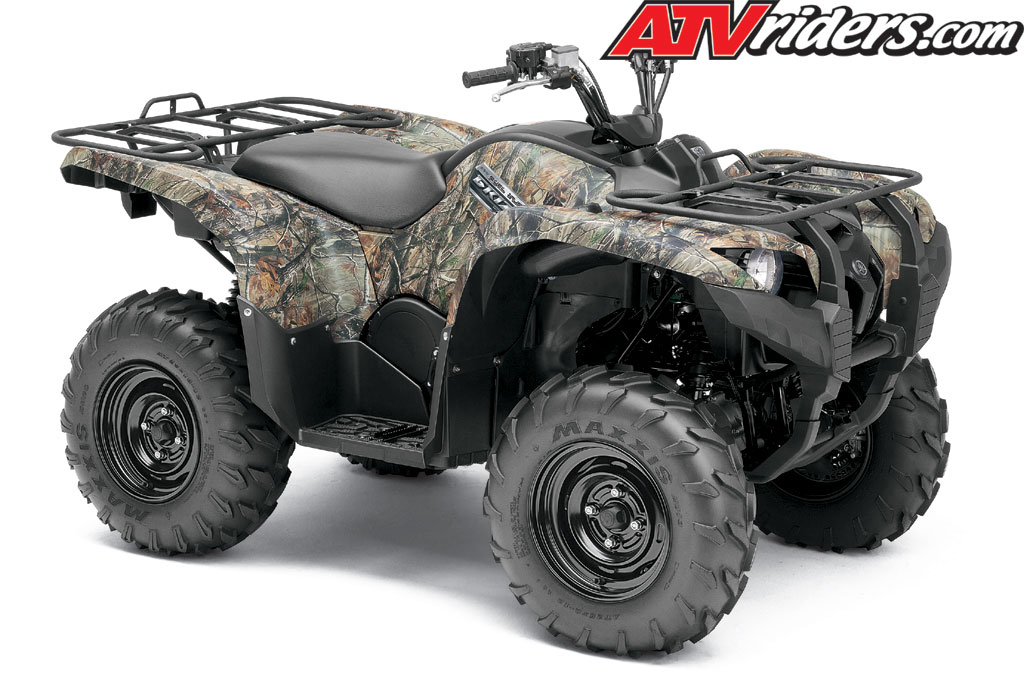

2012 Yamaha Grizzly 700 FI
Auto 4x4 Utility ATV Info
 |
|
2012 Yamaha
Grizzly 700 FI 4x4 Utility ATV
|
Yamaha Grizzly
700 FI Utility ATV New
Features
|
- New oil access cover
allows easy access to check oil level.
- Fenders have a textured
finish that resist scratching and scuffing.
- Gas charged rear shocks
offer a quality damping feel and excellent
performance over a long period of time.
- Rugged Maxxis®
tires get the Grizzly moving over the
gnarliest terrain.
|
Yamaha Grizzly
700 FI Utility ATV Key Features
|
- This most powerful
Yamaha Grizzly Utility ATV with its 686cc liquid-cooled,
four-stroke engine and light weight
has the best power-to-weight ratio of
any Yamaha utility ATV.
- Steel Blue model includes
cast aluminum wheels.
- Yamaha Fuel Injection
means instantaneous cold starts and
optimal performance in nearly any condition,
from sea level to 15,000 feet.
- Industry first: Electric
Power Steering system lightens steering
for superior comfort and terrainability.
- Industry-exclusive,
fully automatic Ultramatic® transmission
is the most advanced drive system in
ATVs. An automatic centrifugal clutch
maintains constant belt tension for
reduced belt wear and uses a sprag clutch
for all-wheel downhill engine braking
in 4WD mode.
- Three-position On-Command
In/Out 4WD feature lets you switch between
2WD, limited-slip 4WD and fully locked
differential 4WD—all with the
simple push of a button.
- Fully independent
long-travel four-wheel suspension features
double-wishbone suspension front and
rear with five-way preload-adjustable
shocks for maximum control and comfort
over rough terrain. Smoothest-running
and -riding Grizzly ever.
- Advanced digital instrument
panel boasts a multifunction LCD display
with speedometer, odometer, dual tripmeter,
hour meter, 4WD status, transmission
position, clock and fuel gauge.
|
Yamaha Grizzly
700 FI Utility ATV Engine
|
- Raptor-based
four-valve combustion chamber design
produces a potent combination of low-rev
torque, instant throttle response and
high horsepower.
- Compact engine design
features a 35-degree cylinder angle
for ground clearance and lower seat
height for quick steering and maneuverability.
- Gear-driven crankshaft
balancer shaft and rubber-damper engine
mounts reduce vibration.
- Ceramic-composite
cylinder liners provide outstanding
durability and heat dissipation; forged
piston is light and strong and rides
a carburized, chrome-moly connecting
rod.
- Two-lobe overhead
cam and a pair of needle-roller rocker
arms reduce friction by 50 percent for
increased fuel efficiency and torque.
- Mikuni fuel injection
with 44mm bore and throttle position
sensor means easy cold starts and flawless
fuel delivery in nearly any condition.
- Pushbutton electric
start with seven-disc torque-limiting
damper assembly to protect the starter
motor.
- Straight driveshaft
layout eliminates U-joints for reduced
friction, noise, vibration, and maintenance.
- Stainless steel exhaust
system features aluminum heat shields
and a screen-type spark arrestor for
great power with minimum noise output.
- High-capacity aluminum
radiator with fan-assist delivers maximum
cooling efficiency and is positioned
high in the frame for optimal protection.
- Automatic cam chain
tensioner reduces engine maintenance
and helps extend engine life.
- Five-position shift
lever with H, L, N, R and P gates provides
positive Ultramatic transmission operation.
- Override button allows
engine to make maximum rpm in full Diff.
Lock mode.
- Sealed drive case
keeps out water and debris to help increase
durability.
|
Yamaha Grizzly
700 FI Utility ATV Chassis/Suspension
|
- WideArc front
suspension A-arms provide outstanding
ground clearance.
- Five-way preload-adjustable
shocks provide a comfortable ride, whatever
the load or trail conditions.
- Four-wheel hydraulic
disc brakes serve up consistent, long-lasting
braking power under all sorts of nasty
conditions.
- Electric power steering
varies assist according to speed and
torque for increased comfort and incredible
maneuverability— even in 4WD.
- The 5.3-gallon fuel
tank is located under the seat for excellent
mass centralization and handling; there’s
a 4.8-liter water-resistant storage
compartment under there, too.
- 11.8 inches of ground
clearance and full-length composite
skidplate deliver maximum underbelly
protection while enhancing terrainability.
- 25x8-12 front and
25x10-12 rear Maxxis tires provide
responsive steering and handling along
with excellent comfort.
- Rugged injection-molded
front bumper and CV joint guards protect
against rock and debris damage.
|
|
- Center-mounted, heavy-duty
trailer hitch comes standard and can
tow more than 1300 pounds.
- LCD instrument display
contains fuel injection and electric
power steering information, as well
as bar-type fuel gauge, speedometer,
odometer, trip meter, clock, and Diff.
Lock indicator.
- Rugged steel cargo
racks with special, extra-durable wrinkle
paint finish can pack a total of 286
pounds combined (99 front, 187 rear).
- Dual 35-watt multireflector
halogen bulb headlights with high/low
beams light up the night.
- Assembled in Newnan,
GA, U.S.A.
|
www.Yamaha-Motor.com
|
