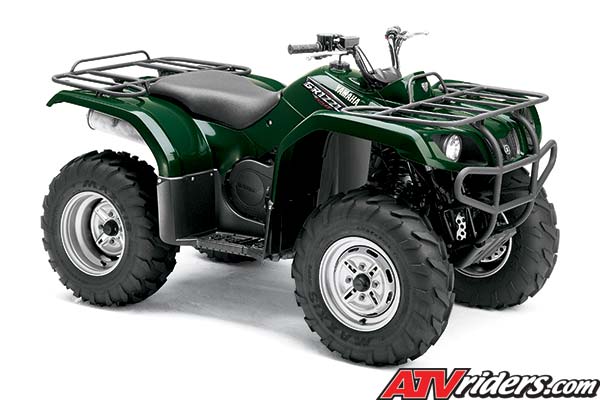

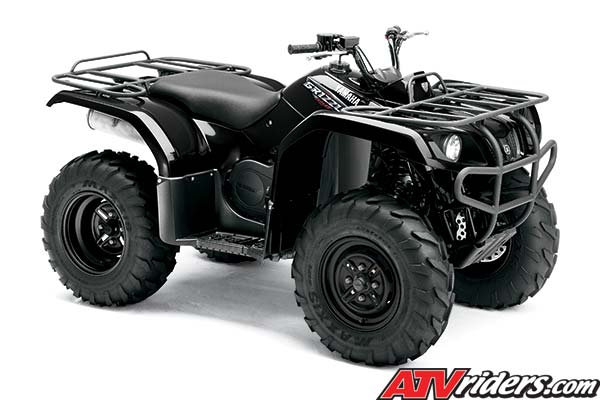

*2009 Grizzly 350 2WD Automatic Utility ATV*

Grizzly 350 Auto. ATV Key Features

The power-packed, full-featured Grizzly 350 Automatic 2WD carries a lot of advanced Yamaha ATV technology in an affordable package.
Fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and downhill engine braking.
Light weight and advanced design produce an ATV with light steering and a class-leading* turning radius, for excellent maneuverability and nimble handling.
Left-side–mounted F/N/R shift lever is easily accessible.

Tough-as-nails 348cc air-/oil-cooled SOHC, four-stroke single produces stump-pulling bottom-end power and loves to rev.
Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
Fully sealed drive case keeps out water and debris to minimize belt slippage.
Pushbutton electric starter is backed up by auxiliary recoil starter.
Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
Automatic cam chain tensioner reduces engine maintenance.

Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
9.7 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.
Light steering and a class-leading turning radius combine for increased comfort and incredible maneuverability.
Reliable, low-maintenance shaft drive.
32.6-inch seat height creates enhanced handling.
Independent double-wishbone front suspension has five-way preload-adjustable shocks and 6.3 inches of travel.
Sturdy steel swingarm is controlled by a single rear shock with five-way adjustable preload and 7.1 inches of travel.
Aggressive 25x8-12 front and 25x10-12 rear tires further boost ground clearance while providing plenty of traction and responsive handling.
Heavy-duty front carry bar.

Additional Features

Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
Easy-access, tool-free air filter box.
Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
Large front and rear fenders with inner guards offer excellent mud/splash protection.
Water-resistant, large-capacity underseat storage box provides added convenience.
Plush, specially designed seat is contoured for incomparable rider comfort.
Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock.
Rear brake/taillight.
Maintenance-free 12-amp-hour battery provides reliable all-weather starting power.
Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
Dual, bright, multireflector 30-watt Krypton bulb headlights with high and low beams.
Easy, handlebar-mounted choke lever.
Built in Newnan, GA, USA.
