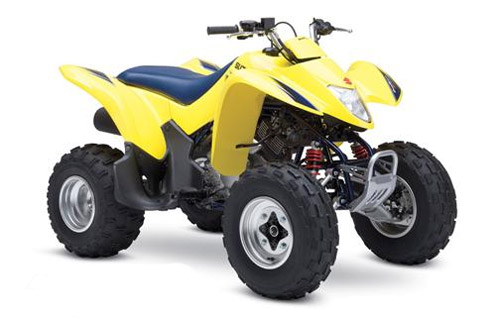

2008 Suzuki QuadSport Z250
ATV - Specifications
| Engine: |
246cc, 4-stroke, single-cylinder,
air-cooled, SOHC, 2-valve, TDCC |
| Bore Stroke: |
66.0 x 72mm |
| Compression Ratio: |
9.2:1 |
| Fuel System: |
MikuniBSR29 |
| Lubrication: |
Wet Sump |
| Ignition: |
Electronic iginition (CDI) |
| Transmission: |
5-speed with reverse, automatic
clutch |
| Final Drive: |
Shaft |
| Overall Length: |
1720mm (67.7 in.) |
| Overall Width: |
1070mm (42.1 in.) |
| Overall Height: |
1090mm (42.9 in.) |
| Seat Height: |
810mm (31.9 in.) |
| Ground Clearance: |
230mm (9.1 in.) |
| Wheelbase: |
1135mm (44.7 in.) |
| Dry Weight: |
166kg (366 lbs.) |
| Suspension Front: |
Independent, double A-arm, oil
damped, adjustable preload, 6.1 inches of travel |
| Suspension Rear: |
Swingarm-type, oil damped, adjustable
preload 6.1 inches of travel |
| Brakes Front: |
Dual hydraulic disc |
| Brakes Rear: |
Mechanical Drum |
| Tires Front: |
AT 22 x 7-10 |
| Tires Rear: |
AT 20 x 10-9 |
| Fuel Tank Capacity: |
10.6 liter (2.80 gal.) |
| Color: |
Yellow, White |
www.SuzukiCycles.com
|
|
|
|
|
|
|
