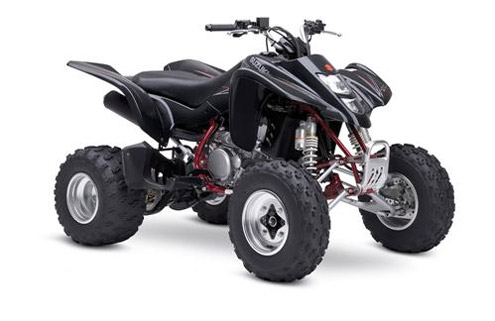

2007 Suzuki QuadSport Z400
Sport ATV - Specifications
Suzuki
Z400 Sport ATV Specifications:
|
| Engine: |
398cc, 4-stroke, single
cylinder, liquid-cooled, DOHC, 4-valve, TSCC |
| Bore Stroke: |
90.0 x 62.6mm |
| Compression
Ratio: |
11.3:1 |
| Fuel System: |
Mikuni BSR36 |
| Lubrication: |
Dry sump |
| Ignition: |
Digital/transistorized |
| Transmission: |
5-speed, with reverse |
| Final
Drive: |
# 520 chain |
| Overall
Length: |
1830mm (72.0 in.) |
| Overall
Width: |
1165mm (45.9 in.) |
| Overall
Height: |
1160mm (45.7 in.) |
| Seat Height: |
810mm (31.9 in.) |
| Ground
Clearance: |
265mm (10.4 in.) |
| Wheelbase: |
1245mm (49.0 in.) |
| Dry Weight: |
169kg (372 lbs.) |
| Suspension
Front: |
Independent, double A-arm, fully
adjustable preload, compression & rebound
damping, 8.5 inches of travel |
| Suspension
Rear: |
Linkage-type, gas/oil damped, fully
adjustable spring preload, adjustable compression
and rebound damping, 9.1 inches of travel |
| Brakes
Front: |
Dual hydraulic discs |
| Brakes
Rear: |
Single hydraulic disc |
| Tires
Front: |
AT 22 x 7-10 |
| Tires
Rear: |
AT 20 x 10-9 |
| Fuel Tank
Capacity: |
10 liters (2.6 gal.) |
| Color: |
Yellow, White, Black (Black MSRP
$5,999) |
