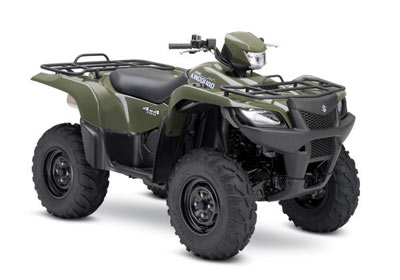

2007 Suzuki KingQuad 700 4x4
Utility ATV Specifications
KingQuad 700
4x4 Specifications:
|
| Engine: |
695cc, DOHC, four-stroke,
single cylinder, liquid-cooled |
| Bore Stroke: |
102.0 X 85.0mm |
| Compression Ratio: |
10.0:1 |
| Fuel System: |
Fuel Injection |
| Lubrication: |
Wet sump |
| Ignition: |
CDI |
| Transmission: |
V-belt CVT automatic with high/low
range sub-transmission, 2WD/4WD/4WD front differential
lock |
| Final Drive: |
Shaft drive |
| Overall Length: |
2120mm (83.5 in.) |
| Overall Width: |
1210mm (47.6 in.) |
| Overall Height: |
1220mm (48.0 in.) |
| Seat Height: |
860mm (33.9 in.) |
| Ground Clearance: |
260mm (10.2 in.) |
| Wheelbase: |
1280mm (50.4 in.) |
| Dry Weight: |
272kg (602 lbs.) |
| Suspension Front: |
Independent, double A-arm, oil-damped,
five preload settings |
| Suspension Rear: |
Independent, double A-Arm oil-damped,
five preload settings |
| Brakes Front: |
Dual hydraulic disc |
| Brakes Rear: |
Sealed hydraulic disc |
| Tires Front: |
AT 25 x 8-12 |
| Tires Rear: |
AT 25 x 10-12 |
| Fuel Tank Capacity: |
17.5 liter (4.6 gal.) |
| Color: |
Black, Green, Red |
www.SuzukiCycles.com
|
|
|
|
|
|
|
