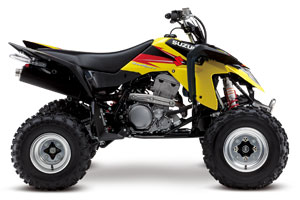

2013 Suzuki QuadSport Z400
Sport ATV Specifications
|
2013
Suzuki QuadSport Z400 ATV Specifications:
|
| Type |
Sport ATV |
| Warranty |
12 month limited warranty. |
| Suggested Retail |
TBA |
| Engine |
4-stroke, liquid-cooled, DOHC |
| Bore & Stroke |
90.0 mm (3.543 in) x 62.6 mm
(2.465 in) |
| Compression Ratio |
11.3 : 1 |
| Fuel System |
Fuel injection |
| Lubrication |
Dry sump |
| Ignition |
Electronic ignition (CDI) |
| Starter |
Electric |
| Transmission |
5-speed forward with reverse |
| Final Drive |
RK 520SMOZ10S, 96 links |
| Overall Length |
1830 mm (72.0 in) |
| Overall Width |
1190 mm (46.9 in) |
| Overall Height |
1215 mm (47.8 in) |
| Seat Height |
810 mm (31.9 in) |
| Ground Clearance |
265 mm (10.4 in) |
| Wheelbase |
1245 mm (49.0 in) |
| Curb Weight |
193 kg (425 lbs |
| Suspension Front |
Independent, double wishbone,
coil spring, oil damped |
| Suspension Rear |
Swingarm type, coil
spring, oil damped |
| Brakes Front |
Disc brake, twin |
| Brakes Rear |
Disc brake |
| Tires Front |
AT22 × 7 R10 tubeless |
| Tires Rear |
AT20 × 10 R9 tubeless
|
| Fuel Tank Capacity |
9.5 L (2.5/2.1 US/Imp gal)
|
| Color |
Yellow, White |
www.SuzukiCycles.com
|
|
|
|
|
|
|
