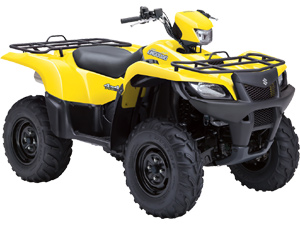

2011 Suzuki KingQuad 750 AXi
Power Steering 4x4
ATV Specifications
|
2011
KingQuad 750 AXi Power Steering ATV
Specifications:
|
|
Chassis:
|
| Brakes Front |
Disc
brake, twin |
| Brakes Rear |
Sealed
oil-bathed multi-disc |
| Color |
Champion
Yellow, Great Blue, Black and White |
|
Curb Weight |
305
kg (672 lbs) |
| Final Drive |
Shaft
drive |
| Fuel Tank Capacity |
17.5
L (4.6/3.8 US/Imp gal) |
| Ground Clearance |
260
mm (10.2 in) |
| Overall Length |
2115
mm (83.3 in) |
| Overall Width |
1210
mm (47.6 in) |
| Seat Height |
920
mm (36.2 in) |
| Suspension Front |
Independent,
double A-Arm, coil spring, oil damped |
| Suspension Rear |
Fully
independent A-Arm and I-Beam rear suspension
with five-way preload-adjustable shock absorbers |
| Tires Front |
AT25
× 8-12, tubeless |
| Tires Rear |
AT25
× 10-12, tubeless |
| Transmission |
Automatic
variable ratio (V-belt), with high-/low-range,
and reverse |
| Wheelbase |
1285
mm (50.6in) |
|
Engine:
|
| Bore Stroke |
104.0
mm (4.094 in) x 85.0 mm (3.346 in) |
| Compression Ratio |
10.0
: 1 |
| Engine |
722cc
(44.1 cu. in), 4-stroke, liquid-cooled, DOHC |
| Fuel System |
Suzuki
Fuel injection |
| Ignition |
Electronic
ignition (CDI) |
| Lubrication |
Wet
Sump |
| Starter |
Electric
starter |
|
Warranty:
|
| Warranty |
12
month limited warranty. |
www.SuzukiCycles.com
|
|
|
|
|
|
|
