| Type |

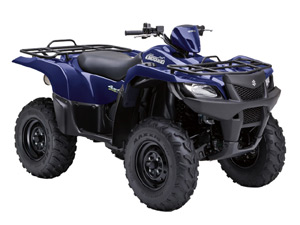

Utility Sport ATV |
| Warranty |
12 month limited warranty. |
| Suggested Retail |
$6999 |
| Engine |
4-stroke, liquid-cooled, OHC |
| Bore & Stroke |
84.0 mm (3.307 in) x 82.0 mm
(3.228 in) |
| Compression Ratio |
10.0 : 1 |
| Fuel System |
Fuel injection |
| Lubrication |
Wet sump |
| Ignition |
Electronic ignition (CDI) |
| Starter |
Electric and recoil starter |
| Transmission |
Automatic variable ratio (V-belt) |
| Final Drive |
Shaft drive |
| Overall Length |
2115 mm (83.3 in) |
| Overall Width |
1210 mm (47.6 in) |
| Overall Height |
1215 mm (47.8 in) |
| Seat Height |
860 mm (33.9 in) |
| Ground Clearance |
260 mm (10.2 in) |
| Wheelbase |
1280 mm (50.4 in) |
| Curb Weight |
305 kg (672 lbs) |
| Suspension Front |
Independent, double wishbone,
coil spring, oil damped |
| Suspension Rear |
Independent, double wishbone,
coil spring, oil damped |
| Brakes Front |
Disc brake, twin |
| Brakes Rear |
Sealed oil-bathed multi-disc |
| Tires Front |
AT25 × 8-12, tubeless |
| Tires Rear |
AT25 × 10-12, tubeless |
| Fuel Tank Capacity |
17.5 L (4.6/3.8 US/Imp gal) |
| Color |
Champion Yellow, Great Blue,
and White |
