2014

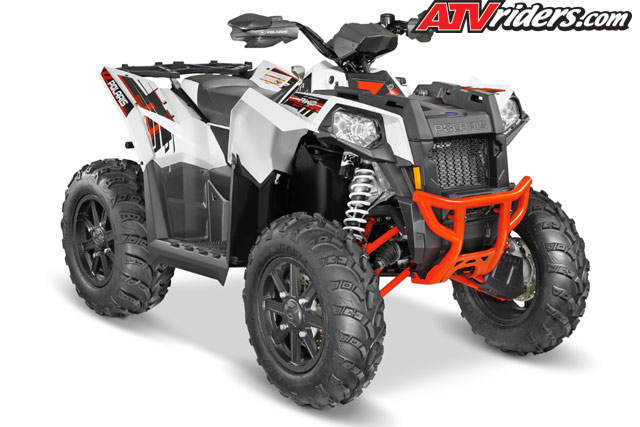

Polaris Scrambler XP 1000 ATV Specifications |
| Engine Type |
4-Stroke SOHC Twin Cylinder |
| Displacement |
952cc |
| Fuel System |
Electronic Fuel Injected |
| Cooling |
Liquid |
| Drivetrain |
|
| Transmission/Final Drive |
Automatic PVT P/R/N/L/H; Shaft |
| Drive System |
On-Demand True AWD/2WD |
| Engine Braking System |
N/A |
| Active Descent Control |
N/A |
| Suspension |
|
| Front Suspension |
Dual A-Arm 9" (22.9 cm) Travel |
| Rear Suspension |
Dual A-Arm, Rolled 10.25" (26 cm) Travel |
| Brakes |
|
| Front/Rear Brakes |
Single Lever 4-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake |
| Parking Brake |
Park in Transmission/Lockable Hand Lever |
| Tires / Wheels |
|
| Front Tires |
26 x 8-14; 489 II |
| Rear Tires |
26 x 10-14; 489 II |
| Wheels |
Matte Black 8 spoke Cast Aluminum |
| Dimensions / Capacities |
|
| Wheelbase |
53" (134,6cm) |
| Dry Weight |
767 lb (338 kg) |
| Overall Vehicle Size (L x W x H) |
82.3" x 48.6" x 48.4" (209 cm x 123 cm x 123 cm) |
| Ground Clearance |
11.5" (29 cm) |
| Seat Height |
35" (89 cm) |
| Fuel Capacity |
5.25 lb gal (19.9 L) |
| Front/Rear Rack or Box Capacity |
25 lb (11.3 kg)/50 lb (22.7 kg) |
| Payload Capacity |
290 lbs (131 kg) |
| Hitch Towing Rating |
1,500 (680.4 kg) |
| Unbraked Trailer Towing Capacity |
1,914 lb (868.2 kg) |
| Hitch/Type |
Standard/1.25" Receiver |
| Features |
|
| Cargo System |
Lock & Ride |
| Lighting |
White LED; Hi/Low Beam; Single Rear Taillight |
| Electronic Power Steering |
Standard |
| Instrumentation |
Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Clock, Service Time, Diagnostic Indicator, Gear Indicator, Fuel Gauge, Hi-Temp/Low-Batt Lights, DC Outlet |
