Sportsman

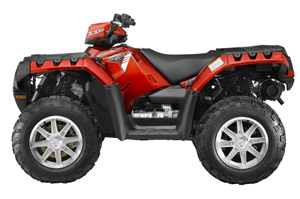

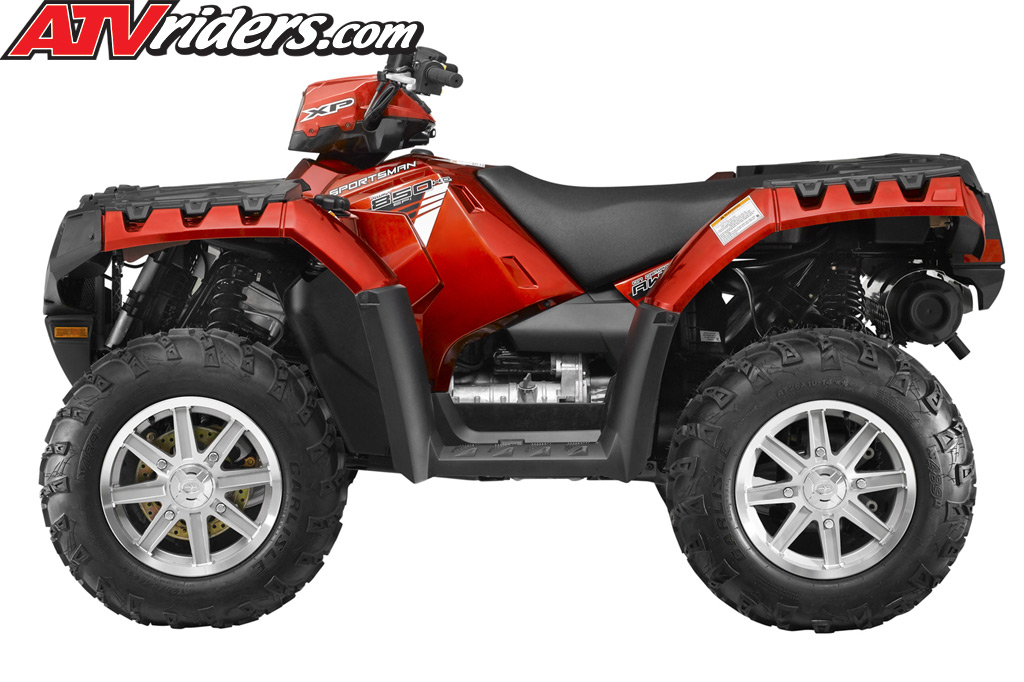

XP 850 HO EPS 4x4 EFI Utility
ATV Specifications |
| Engine
Type |
4-Stroke
SOHC Twin Cylinder |
| Displacement |
850cc
High Output HO |
| Fuel
System |
Electronic
Fuel Injection |
| Cooling |
Liquid |
| Transmission/Final
Drive |
Automatic
PVT P/R/N/L/H; Sha |
| Drive
System |
On-Demand True AWD/2WD |
Engine Braking System/
Active Descent Control |
Standard/Standard |
| Front
Suspension |
Dual A-Arm 9" (22.9 cm) Travel |
| Rear
Suspension |
Dual A-Arm, Rolled 10.25"
(26 cm) Trave |
| Front/Rear
Brakes |
Single Lever 4-Wheel Hydraulic
Disk with Hydraulic Rear Foot
Brak |
| Parking
Brake |
Park in Transmission/Lockable
Hand Leve |
| Front
Tires |
26 x 8-14; 489 I |
| Rear
Tires |
26 x 10-14; 489 I |
| Wheels |
Cast Aluminum |
| Wheelbase |
53" (134.6 cm |
| Dry
Weight |
773 lb (351.4 kg |
Overall Vehicle Size
(L x W x H) |
83.25
x 47.6 x 50.75" (211.4 x
120.9 x 128.9 cm |
| Ground
Clearance |
12" (30.5 cm) |
| Seat
Height |
37" (94 cm |
| Fuel
Capacity |
5.25 gal (19.9 L |
Bed Box Dimensions
(L x W x H) |
N/A |
| Front/Rear
Rack Box Capacity |
120
lb (55 kg)/240 lb (110 kg) |
| Payload
Capacity |
575
lbs (261 kg) |
| Hitch
Towing Rating |
1,500
lb (680.4 kg) |
| Unbraked
Trailer Towing Capacity |
1,914
lb |
| Hitch/Type |
Standard/2"
Receiver |
| Cargo
System |
Lock
& Ride |
| Lighting |
Triple
50w High Beam, Dual 50w Low Beam
Headlights; Dual Brakelights/Taillights |
| Electronic Power Steering |
Standard |
| Instrumentation |
Digital
Gauge, Speedometer, Odometer,
Tachometer, Two Tripmeters, Hour
Meter, Clock, Service Time,
Diagnostic Indicator, Gear Indicator,
Fuel Gauge, Hi-Temp/Low-Batt Lights,
DC Outlet |
| Colors |
Painted
Sunset Red and NEW! Blue Fire,
Limited Editions: Stealth Black
and, Browning® Edition Polaris
Pursuit Camo |
