2013

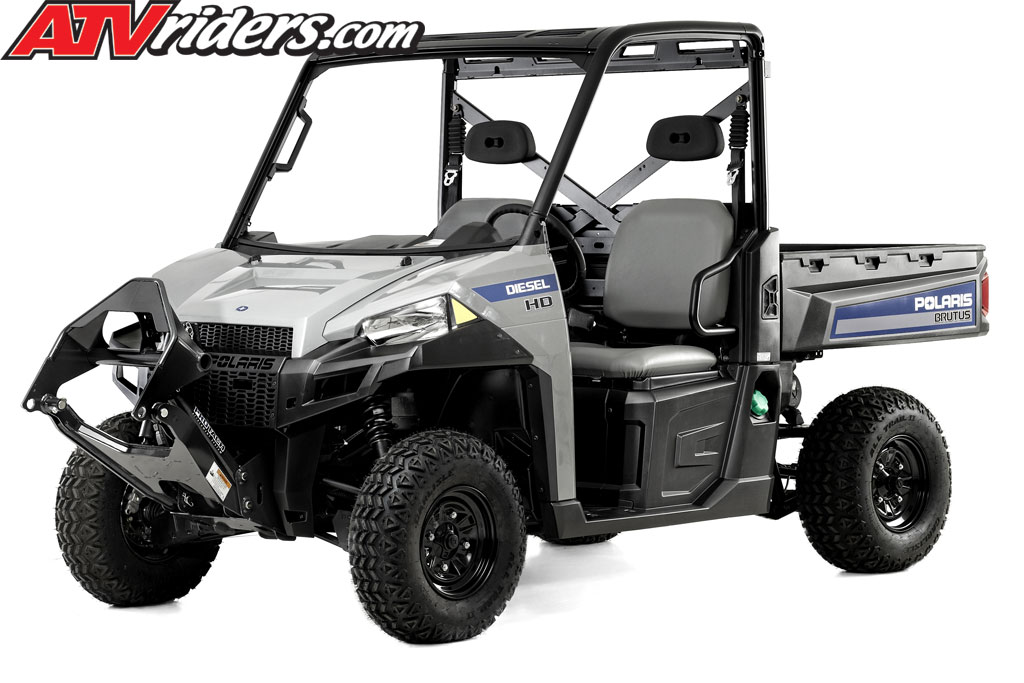

Polaris BURTUS Ranger Diesel UTV / SxS
- Specifications
|
| Engine
Type |
3-Cylinder
Diesel |
| Displacement |
904cc (24 HP ) |
| Fuel
System |
Indirect
Injection |
| Cooling |
Liquid |
| Transmission/Final
Drive |
Automatic Hydrostatic with Treadle Pedal (H/L/N/Park) |
| Drive
System |
On-Demand True AWD / 2WD / VersaTrac Turf Mode |
Engine Braking System/
Active Descent Control |
Hydrostatic EBS |
| Front
Suspension |
Dual A-Arm 6" (152 mm) Travel |
| Rear
Suspension |
Multi-Link Coil Over De-Dion Suspension 6" (152 mm) Travel |
| Front/Rear
Brakes |
4-Wheel Hydraulic Disc with Dual-Bore Front Calipers |
| Parking
Brake |
Hand-Actuated |
| Front
Tires |
25 x 10-12; 489 / 25 x 9-12; Carlisle All-Trail II (HD & HDpto) |
| Rear
Tires |
25 x 11-12; 489 / 25 x 11-12; Carlisle All-Trail II (HD & HDpto) |
| Wheels |
Stamped
Steel |
| Wheelbase |
84" (2134 mm)
|
| Dry
Weight |
1643 lb (745.3 kg) (BRUTUS)
1830 lb (830.1 kg) (HD)
2148 lb (974.3 kg) (HDpto) |
Overall Vehicle Size
(L x W x H) |
123.5" x 64" x 73" (3137 x 1626 x 1854 mm)
140" x 64" x 73" (3556 x 1626 x 1854 mm) HD
140" x 64" x 74" (3556 x 1626 x 1880 mm) HDpto |
| Ground
Clearance |
10" (254 mm) / 10" (254 mm) – Vehicle, 7" (178 mm) – PTO
|
| Seat
Height |
N.A. |
| Fuel
Capacity |
10 gal (37.9 L) |
Bed Box Dimensions
(L x W x H) |
43.5" x 54" x 11.5" (1105 x 1372 x 292 mm) |
| Front/Rear
Rack Box Capacity |
1250 lb (567 kg) |
| Payload
Capacity |
1,500
lb (680.4 kg) |
| Hitch
Towing Rating |
2,000
lb (907.2 kg) |
| Unbraked
Trailer Towing Capacity |
N.A. |
| Hitch/Type |
Standard/2"
Receiver |
| Cargo
System / CAB |
Optional Lock & Ride PRO-FITTM Cab Enclosures BRUTUS HD
Standard, Fully Enclosed Cab with Heat, Defrost and A/C HDpto
Lock & Ride with Integrated Box Tie Downs
|
| Lighting |
55W
low/ 60W high |
| Electronic Power Steering |
Hydraulic Power Steering |
| Instrumentation |
Digital Gauge, Speedometer, Odometer, Tachometer, Trip Meter, Hour Meter, Gear Indicator, DC Outlet (2), Hi-Temp Light |
| Colors |
Sage
Green |
