2012

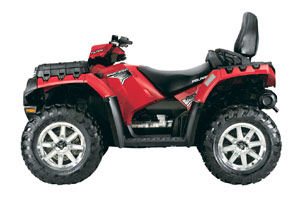

Polaris Sportsman Touring 550 EPS
EFI 4x4 ATV Specifications |
| Engine
Type |
4-Stroke
SOHC Single Cylinder |
| Displacement |
549cc |
| Fuel
System |
Electronic
Fuel Injected |
| Cooling |
Liquid |
| Transmission/Final
Drive |
Automatic
PVT P/R/N/L/H; Shaft |
| Drive
System |
On-Demand
True AWD/2WD |
Engine Braking System/
Active Descent Control |
Standard/Standard |
| Front
Suspension |
Dual
A-Arm 9" (22.9 cm) Travel |
| Rear
Suspension |
Dual
A-Arm, Rolled 10.25" (26 cm) Travel |
| Front/Rear
Brakes |
Single
Lever 4-Wheel Hydraulic Disc with Hydraulic
Rear Foot Brake |
| Parking
Brake |
Park
in Transmission/Lockable Hand Lever |
| Front
Tires |
26
x 8-14; Maxxis |
| Rear
Tires |
26
x 10-14; Maxxis |
| Wheels |
Cast
Aluminum |
| Wheelbase |
57"
(144.8 cm) |
| Dry
Weight |
765
lb (348 kg) |
Overall Vehicle Size
(L x W x H) |
86.5
x 47.6 x 58.25"
(219.7 x 120.9 x 147.9 cm) |
| Ground
Clearance |
11.25"
(28.5 cm) |
| Seat
Height |
35.75"
(90.8 cm) |
| Fuel
Capacity |
5.25
gal (19.9 L) |
Bed Box Dimensions
(L x W x H) |
N.A. |
| Front/Rear
Rack Box Capacity |
120
lb (55 kg)/240 lb (110 kg) |
| Payload
Capacity |
|
| Hitch
Towing Rating |
1,500
lb (680.4 kg) |
| Unbraked
Trailer Towing Capacity |
1,995
lb (905 kg) |
| Hitch/Type |
Standard/1.25"
Receiver |
| Cargo
System |
Lock
& Ride |
| Lighting |
Triple
50w High Beam, Dual 50w Low Beam Headlights;
Dual Brakelights/Taillights |
| Electronic Power Steering |
Standard |
| Instrumentation |
Analog
Speedometer, Digital Odometer, Tachometer,
Two Tripmeters, Hour Meter, Clock, Service
Indicator, Diagnostic Indicator, Gear
Indicator, Fuel Gauge, AWD Indicator,
Hi-Temp/Low-Batt Lights, DC Outlet |
| Colors |
Boardwalk
Blue, Solar Red |
