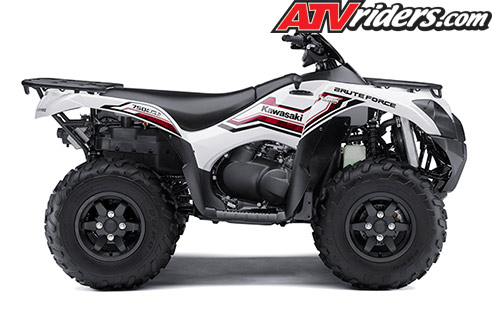

2014 Kawasaki Brute Force 750 4x4i Specs

Engine:

Four-stroke, V-twin, liquid-cooled, SOHC, four-valve

Displacement:

633 cc

Bore x stroke:

80.0 x 63.0mm

Compression ratio:

9.9:1

Carburetion:

(2) Keihin CVKR-34

Starting system:

Electric

Ignition:

DC-CDI

Transmission:

Continuously variable belt-drive transmission with high and low range, plus reverse, and Kawasaki Engine Brake Control

Final drive:

Selectable four-wheel drive with variable front differential control, shaft

Frame:

Double cradle, tubular steel

Front suspension / wheel travel:

Dual A-arms, two shocks with five-way preload adjustment / 6.7 in.

Rear suspension / wheel travel:

Dual A-arms, two shocks with five-way preload adjustment / 7.9 in.

Front tires:

AT 25 x 8-12

Rear tires:

AT 25 x 10-12

Front brakes:

(2) Dual-piston disc

Rear brake:

Sealed, oil-bathed, multi-disc

Overall length:

86.4 in.

Overall width:

45.9 in.

Wheelbase:

50.6 in.

Ground clearance:

9.7 in.

Seat height:

35.6 in.

Total rack capacity:

264 lbs.

Towing capacity:

1,250 lbs.

Curb weight:

652.7 lbs.

Fuel capacity:

5.4 gal.

Lighting:

(2) 40W headlights, 5W taillight, 21W stoplight

Instruments:

Digital speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4 / 4x4 indicator light, neutral indicator light, reverse indicator light, low fuel warning light, low oil warning light

Color choices:

Bright White
