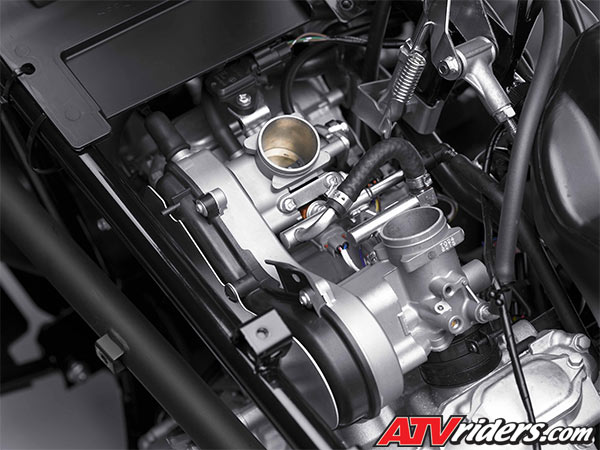

Digital fuel Injection
provides the perfect delivery throughout
the rpm range with fast throttle response
36mm throttle
bodies are controlled by a 32-bit CPU,
which monitors coolant temperature,
air intake temperature, throttle position,
air intake pressure, vehicle speed and
crankshaft angle to help ensure the
perfect air fuel mixture
Light throttle
action due to low spring rate for the
throttle return springs and ball bearing
equipped throttle body for less friction
High-pressure
fuel pump located inside tank
Aluminum cylinders
are Electrofusion-plated for light weight,
long wear and excellent heat dispersion
Highly efficient
and compact rare-earth magnets in the
generator help contribute to reduced
engine width
Engine can be
started in any gear when a brake is
applied
Access to the
air filter requires removing only one
cover
Radiator is
compact and placed high in the chassis
for better protection against mud and
debris
Bruce
Force 750 4x4i Transmission/Selectable
Four-wheel-drive:
Fully automatic Kawasaki
Automatic Powerdrive System (KAPS) continuously
variable transmission (CVT) has high
and low forward gears plus reverse
Limited-slip front
differential reduces steering effort
under normal four-wheel drive operation,
while Variable Front Differential Control
permits rider to distribute torque equally
to left and right front wheels for maximum
traction
Air for the CVT and
airbox enter from a reverse-facing snorkel
located beneath the handlebars to help
protect against water and mud
Rider can select two-
or four-wheel-drive operation by pressing
a button located on the handlebar
Cardan joints on drive
shafts absorb torque fluctuations and
reduce vibration
Plastic front and
rear axle boots provide protection from
debris
Bruce
Force 750 4x4i Chassis:
Double-cradle frame
is made of sturdy, tubular steel
Chassis provides 9.7
inches of ground clearance
Dual A-arm front suspension
feature adjustable shocks and 6.7 inches
of travel
Independent rear suspension
provides the best balance of rider comfort
and handling at low to medium speeds,
and provides 7.9 inches of travel
Upper and lower front
A-arms and lower rear A-arms utilize
a combination of needle bearings and
ball joints for smooth suspension action,
stability and excellent rider comfort
Bruce
Force 750 4x4i Misc.
Features:
Dual front disc brakes
with two-piston calipers and Kawasaki’s
sealed, oil-bathed, multi-disc rear
brake system provide maximum stopping
power
Electronically controlled
Kawasaki Engine Brake Control helps
to slow the ATV under certain conditions
Long lasting good looks
with durable thermoplastic olefin bodywork
covered in the Advantage® MAX-I™
HD™ camouflage that extends to
racks and wheels for superior hunting
stealth
Waterproof storage
box in the left front fender that compliments
the easy-access storage pocket on the
right side
Bumper design provides
an effective handgrip position
Comfortable, upright
seating position combined with the independent
rear suspension for a luxurious ride
Rider comfort is enhanced
via soft, yet firm urethane seat foam
that provides lasting support for long
hours in the saddle
Automotive-style instruments
include digital speedometer, odometer,
twin trip meters, clock, hour meter
and fuel gauge and are mounted for easy
viewing
Fitted with pre-routed
tubing and mounting brackets for easy
winch wiring and installation
Four-bulb 40-watt
headlights provide maximum lighting
power for nighttime rides
Aluminum footpegs
help keep weight low
Trailer hitch bracket
with 1,250 lbs. towing capacity is standard
equipment
T ire and wheel design
provides an integrated look with aggressive
bodywork as well as superb traction
