Digital fuel injection
provides the perfect delivery throughout
the rpm range with fast throttle response
36mm throttle bodies
are controlled by a 32-bit CPU, which
monitors coolant temperature, air intake
temperature, throttle position, air
intake pressure, vehicle speed and crankshaft
angle to help ensure the perfect air
fuel mixture
Low spring rate for
the throttle return springs and ball
bearing equipped throttle body reduce
friction and throttle action
High-pressure fuel
pump located inside tank
Aluminum cylinders
are Electrofusion-plated for light weight,
long wear and excellent heat dispersion
Highly efficient and
compact rare-earth magnets in the generator
help contribute to reduced engine width
Engine can be started
in any gear when a brake is applied
Access to the air
filter requires removing only one cover
Radiator is compact
and placed high in the chassis for better
protection against mud and debris
New for 2010, the
reservoir cooling hose is 90mm shorter
and the hose end is positioned 100mm
higher to prevent mud from clogging
the hose
Bruce
Force 750 4x4i Transmission/Selectable
Four-wheel-drive:
Fully automatic Kawasaki
Automatic Powerdrive System (KAPS) continuously
variable transmission (CVT) has high
and low forward gears plus reverse
Limited-slip front
differential reduces steering effort
under normal four-wheel drive operation,
while Variable Front Differential Control
permits rider to distribute torque equally
to front wheels for maximum traction
Air for the CVT and
airbox enter from a reverse-facing snorkel
located beneath the handlebars to help
protect against water and mud
Rider can select two-
or four-wheel-drive operation by pressing
a button located on the handlebar
Cardan joints on drive
shafts absorb torque fluctuations and
reduce vibration
Plastic front and
rear axle boots provide protection from
debris
Bruce
Force 750 4x4i Chassis:
Double-cradle frame
is made of sturdy, tubular steel
Offers 9.7 inches
of ground clearance
Fitted with pre-routed
tubing and mounting brackets for easy
winch wiring and installation
Brute
Force 750 4x4i ATV Engine
Intake
Double A-arm and preload
adjustable shocks with adjustable preload
provide a comfortable ride with 6.7
inches of suspension travel
A-arm caster angle
provides light steering
Upper and lower front
A-arms utilize a combination of needle
bearings and ball joints for smooth
suspension action, stability and excellent
rider comfort

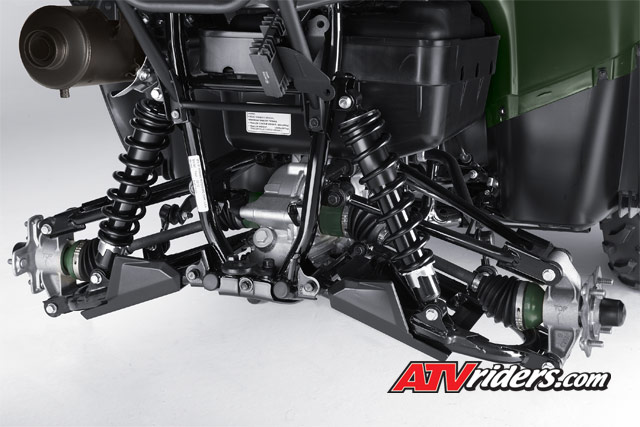

Double A-arm and preload
adjustable shock for each rear wheel
provides superior ride comfort and ground
following ability
Lower rear A-arms
utilize a combination of needle bearings
and ball joints for smooth suspension
action, stability and excellent rider
comfort
Independent rear suspension
provides 7.9 inches of travel
Torsion bar helps
control body roll
Bruce
Force 750 4x4i Misc.
Features:
Dual front disc brakes
with two-piston calipers and Kawasaki’s
sealed, oil-bathed, multi-disc rear
brake system provide maximum stopping
power
Electronically controlled
Kawasaki Engine Brake Control helps
to slow the ATV under certain conditions

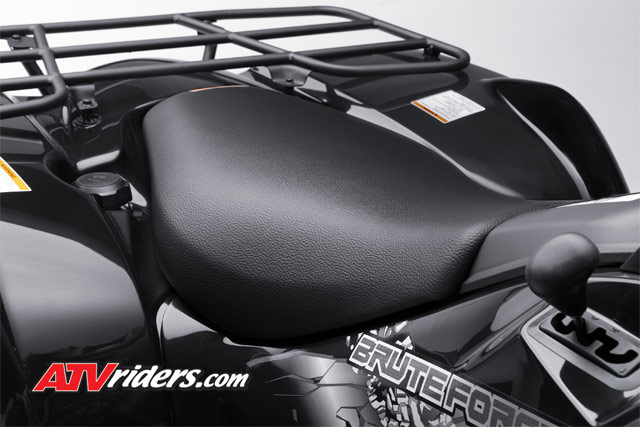

Brute
Force 750 4x4i ATV Seat &
Rack
High-gloss, scratch
resistant Thermo-Plastic Olefin bodywork
stays looking good longer
Waterproof storage
box in the left front fender that compliments
the easy-access storage pocket on the
right side
Bumper design provides
an effective handgrip position
Comfortable, upright
seating position combined with the independent
rear suspension for a plush ride
Rider comfort is enhanced
via soft, yet firm urethane seat foam
that provides lasting support for long
hours in the saddle
Automotive-style instruments
include digital speedometer, odometer,
twin trip meters, clock, hour meter
and fuel gauge and are mounted for easy
viewing
Tire and wheel design
provides an integrated look with aggressive
bodywork as well as superb traction
Four-bulb 40-watt
headlights provide maximum lighting
power for nighttime rides
Aluminum footpegs
help keep weight low
Trailer hitch bracket
with 1,250 lbs. towing capacity is standard
equipment
