2009 Mule 4010 TRANS4x4 UTV Features
and Benefits:

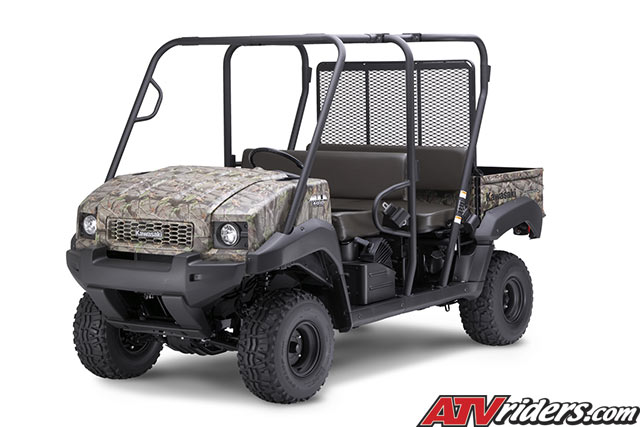

The
2009 Mule 4010 TRANS4x4 is
also availiable in a Realtree
HD Camo Edition
At a glance… -New digital
fuel injection (DFI) system
-New electric power steering (EPS) system
-All-New Styling
-New Dashboard
-Two or four seats with revolutionary
transformable design
-Fully Automatic Transmission with Selectable
2- or 4-Wheel Drive
Transformable Cargo Bed
-Two rows of seats easily
accommodate up to four people
-It can be transformed from a four-passenger
to a two-passenger off-road utility
vehicle with the rear seat folded down
and the cargo bed expanded to carry
larger payload (From 400 lbs. with 4
passengers to 800 lbs. with 2 passengers,)
-Rear bench seat includes retractable
seat belts and padded rear-passenger
grab handle
Liquid Cooled, V-Twin Engine
-Four-stroke, 617cc V-Twin
industrial engine produces exceptional
torque at low engine speeds
-Modern four-stroke design with overhead
valves for efficient running and good
fuel economy
-Large capacity radiator and fan maintain
consistent engine temperatures, even
in hot climates
- Rubber engine mounts minimize vibration,
noise and wear to maximize operation
comfort and diminish fatigue
Digital Fuel Injection
-Computer controlled
fuel injection system automatically
compensates for atmospheric pressure,
air and engine temperature, for easy,
prompt engine starting under a variety
of conditions
-Automatic fast idle speed control eliminates
the need for a choke, allowing the operator
to drive off immediately after a cold
engine start
-Throttle bodies feature sub-throttle
valves for optimum performance and drivability.
The sub throttles are located behind
the main throttle valves and controlled
by the ECU for smooth throttle response
-Automatic digital ignition system helps
ensure smooth efficient operation
-Maximum engine speed is controlled
by the ECU, eliminating the need for
a mechanical governor
-Offers easy engine operation and reduced
maintenance requirements
Environmentally Friendly Emissions
-DFI precision reduces
fuel consumption and cuts exhaust emissions
-Positive crankcase ventilation system
sends blow-by gasses to the intake tract
to be burned in the engine
-Muffler features a U.S. Forest Service-approved
spark arrestor
Kawasaki Automatic Power-Drive
System (KAPS)
-Fully automatic continuously
variable transmission (CVT) features
forward high and low and reverse, and
helps keep the engine in the right operating
rpm for a variety of vehicle speeds,
loads, or terrain
-The CVT has a wide spread of drive
ratios for quick acceleration and ample
pulling power
-Tuned to accommodate higher loads
-Large drive and driven torque converters
maximize engagement area of the thick
and strong drive belt for improved heat
dissipation and add durability
-High-flow cover helps cool the CVT
while providing superb splash protection
and water proofing
-Sheaves with high silicon type material
for increased durability
-An open sided drive pulley cools better
for longer belt life
-Offers adjustable belt deflection
Cab Frame Air Intake
-Draws engine air and
converter cooling air from the top of
the cab frame where there’s less
dust, so the air filter stays cleaner
longer
Torque Converter Air Filter
-Efficient intake cooling
fan draws plenty of air into the CVT
-Special air cleaner with easily replaceable
filter element cuts torque converter
wear by cooling it with filtered air
New Electric Power Steering
(EPS)
-The EPS system reduces
steering effort, especially at low speeds
when turning effort is greatest
-Input from a vehicle speed and torque
sensors determine the amount of steering
assistance required from the system’s
electric motor
-To keep from possibly draining the
battery, the EPS only operates when
the engine is running
-When engine is stopped, more force
is needed to turn the steering wheel
even if the ignition is switched on
4-Wheel Drive with 2-Speed
Transfer Case
-Selectable four-wheel
drive gives the operator traction options
-Shift to four-wheel drive and low range
for maximum traction in adverse conditions
or select two-wheel drive and high range
to cut gear wear and increase fuel economy
Dual Mode Differential
-Dual-mode rear differential
can be “locked” for extra
pulling power and maximum traction or
unlocked when traveling across delicate
terrain
Independent Strut-Type Front
Suspension
-MacPherson strut long-travel
front suspension provide a comfortable
ride and excellent load-carrying capability
-Stiffer springs prevent bottoming and
increase ground clearance
DeDion Rear Suspension
-Overload-style leaf
springs can handle heavy loads, yet
provide a smooth ride when the cargo
box is empty
-Semi-independent action
4-Wheel, Self-Adjusting Sealed
Hydraulic Drum Brakes
-Powerful, low maintenance
four wheel brakes are self-adjusting
and feature extra sealing for protection
against mud, dust and debris
-The brake drums have an added flange
and seal to keep out mud and water
Wheels and Tires
-23-inch tires with stiff
sidewalls for an improved the ride and
added ground clearance
-The rear wheel bearings use two rollers
in one large bearing for added durability
-The wheel bearings seals on all four
wheels have 3 lips for better protection
Front Hood with Storage Tub
-Large under hood storage
tub holds cargo out of site
-Offers quick, easy access with a push-button
latch
-Includes four D-rings for securing
loads
Tilting Cargo Bed
-Steel cargo bed can
carry up to 800 pounds and tilts for
quick unloading
-Thick tailgate panel and secure latching
tailgate locking pins reduces vibration
and noise, and adds durability
-Rugged and Capable
-Can tow up to 1,200 lbs with optional
Kawasaki draw bar
-Meets federal Roll Over Protective
Structure (ROPS) requirements for wheeled
tractors under SAE J1194, 7.1.1, 7.1.2,
7.4, and 7.5, and also meets FMVSS 216
roof crush resistance requirement
-Bench seat can carry up to three
-Durable chassis includes winch-ready
mounts to simplify winch installation
Simple Maintenance
-The oil dipstick and
filler tube are accessed under the seat
-Cyclone-type engine air cleaner has
meter to indicate when to replace the
filter
-An automotive-style fuse box is convenient
and uses blade-type fuses
All-New Bodywork
-New body features rugged,
modern truck look styling
New Dashboard
-Includes dual glove
boxes
-Includes cup holders for both the driver
and passenger
Cab Features
-12V DC outlet with 10
amp capacity
-The 2WD / 4WD lever is mounted on the
dash for easy access
-Relocated parking brake and coolant
temperature warning lights are easy
to see
-Shift lever with Y-gate pattern eliminates
need for Hi-Lo switch lever
-Push-button headlight switch activates
35-watt cat-eye headlights
-Hour meter and a horn are standard
equipment
Popular Accessory Items
-Soft or Hard Top
-Windshield
-Winch
-Enclosed Cab
-Cab Heater
-Snow Plow
