| Model: |

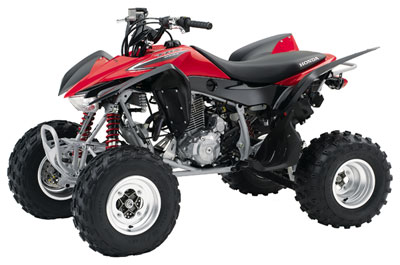

TRX400EX |
| Engine
Type: |
397cc RFVC
air-cooled dry-sump single-cylinder
four-stroke |
| Bore
and Stroke: |
85mm x
70mm |
| Carburetion:
|
38mm piston-valve
with accelerator pump |
| Ignition:
|
CD with
electronic advance |
| Starter: |
Electric |
| Clutch:
|
Manual |
| Transmission:
|
ESP five-speed
with Reverse |
| Driveline:
|
O-ring-sealed
chain |
| Suspension |
Front:
Independent double-wishbone
with Showa shocks, five-position
spring preload adjustability;
8.2 inches travel
Rear: Pro-Link fully adjustable
single Showa shock; 9.1
inches travel |
| Brakes |
Front:
Dual hydraulic 174mm discs
Rear: Single 220mm disc |
| Tires |
Front:
22 x 7-11 knobby radial
Rear: 20 x 10-9 knobby radial |
| Length:
|
71.7 inches |
| Width:
|
45.5 inches |
| Height: |
44.0 inches |
| Seat
Height: |
32.9 inches |
| Ground
Clearance: |
4.1 inches |
| Wheelbase:
|
47.9 inches |
| Turning
Radius: |
10.5 feet
|
| Fuel
Capacity: |
2.6 gallons
|
| Colors: |
Red/Black,
Black/White |
| Curb
Weight*: |
410 pounds |
| *Includes
all standard equipment,
required fluids and a full
tank of fuel-ready to ride. |
| For
highly experienced riders
16 years of age and older. |
