| Model: |

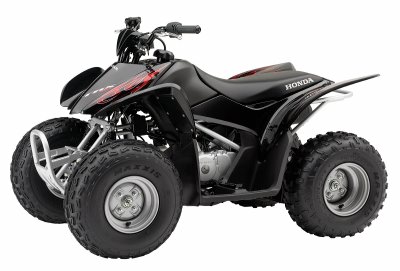

TRX90EX |
| Engine Type: |
86cc air-cooled SOHC
single-cylinder four-stroke |
| Bore and Stroke:
|
47mm x 49.5mm |
| Carburetion:
|
15mm piston-valve |
| Ignition: |
CDI |
| Starter: |
Electric |
| Clutch: |
Automatic |
| Transmission: |
Four-speed |
| Driveline: |
O-ring-sealed chain |
| Suspension |
Front: Independent
suspension; 2.6 inches
travel
Rear: Swingarm with
single shock; 2.6 inches
travel |
| Brakes |
Front: Dual sealed
drum
Rear: Sealed drum |
| Tires |
Front: 20 x 7-8
Rear: 19 x 8-8 |
| Length: |
58.6 inches |
| Width: |
35.2 inches |
| Height: |
36.5 inches |
| Seat Height:
|
26.0 inches |
| Ground Clearance: |
3.9 inches |
| Wheelbase: |
38.7 inches |
| Turning Radius: |
8.3 feet |
| Dry Weight: |
251 pounds |
| Fuel Capacity:
|
2.0 gallons, including
0.3-gallon reserve |
| Colors: |
Black with Flames,
Red |
| Recommended
for riders 12 years of
age and older. |
