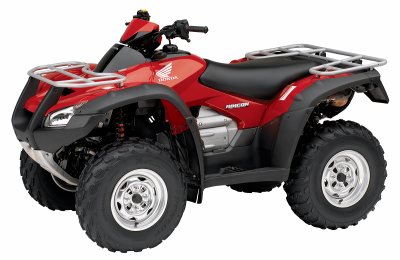

| Model:
|
TRX680FA /
TRX680FGA (with GPS) |
| Engine
Type: |
675cc liquid-cooled
OHV semi-dry-sump longitudinally
mounted single-cylinder four-stroke |
| Bore
and Stroke: |
102.0mm x
82.6mm |
| Carburetion:
|
Electronic
fuel injection (PGM-FI) with
Idle Air Control Valve (IACV)
idle control |
| Ignition: |
Full-transistorized
type with electronic advance |
| Starter:
|
Electric with
auxiliary recoil |
| Transmission:
|
Automatic with
hydraulic torque converter,
three forward gears, reverse
and electronic controls |
| Driveline: |
Direct front
and rear driveshafts with torque-sensitive
front differential |
| Suspension |
Front: Independent
double-wishbone; 6.9 inches
travel
Rear: Independent double-wishbone;
8.0 inches travel |
| Brakes: |
Front: Dual
hydraulic 180mm disc
Rear: Single hydraulic disc |
| Tires: |
Front: 25
x 8-12 radial
Rear: 25 x 10-12 radial |
| Length: |
83.2 inches |
| Width:
|
46.8 inches |
| Height: |
47.5 inches |
| Seat
Height: |
34.5 inches |
| Ground
Clearance: |
10.0 inches |
| Wheelbase:
|
50.8 inches |
| Dry
Weight: |
600 pounds |
| Fuel
Capacity: |
4.5 gallons,
including 1.08-gallon reserve |
| Colors: |
Red, Olive,
NaturalGear Camouflage |
| Recommended
for riders 16 years of age and
older. |
