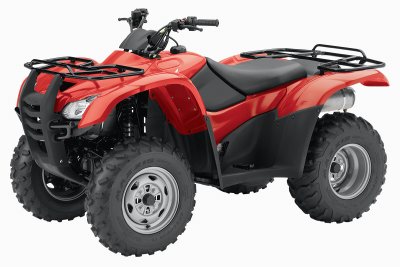

| Model:
|
TRX420TE (with
ESP) / TRX420TM |
| Engine
Type: |
420cc liquid-cooled
fuel-injected OHV wet-sump longitudinally
mounted single-cylinder four-stroke |
| Bore
and Stroke: |
86.5mm x 71.5mm |
| Induction:
|
Keihin 34mm
throttle-body fuel-injection
system |
| Ignition:
|
Full transistor
with electronic advance |
| Starter:
|
Electric with
optional auxiliary recoil |
| Clutch:
|
Automatic |
| Transmission
|
TRX420TE: ESP
five-speed with Reverse
TRX420TM: Five-speed with Reverse |
| Driveline:
|
Direct rear
driveshaft |
| Suspension |
Front: Independent
double-wishbone; 6.3 inches
travel
Rear: Swingarm with single shock;
6.3 inches travel |
| Brakes |
Front: Dual
hydraulic disc
Rear: Sealed mechanical drum |
| Tires |
Front: 24x8-12
Rear: 24x10-11 |
| Length:
|
80.9 inches |
| Width:
|
46.1 inches |
| Height:
|
45.2 inches |
| Seat
Height: |
32.4 inches |
| Ground
Clearance: |
6.5 inches |
| Wheelbase:
|
49.4 inches |
| Turning
Radius: |
8.9 feet |
| Dry
Weight |
TRX420TE: 525
pounds
TRX420TM: 522 pounds |
| Fuel
Capacity: |
3.7 gallons |
| Colors:
|
Red, Olive,
Blue |
| Recommended
for riders 16 years of age and
older. |
