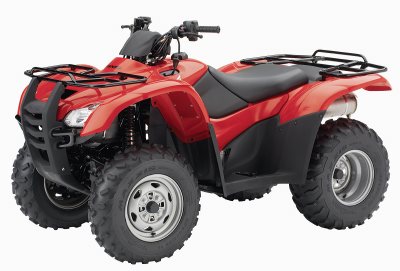

| Model:
|
TRX420FE (with
ESP) / TRX420FM |
| Engine
Type: |
420cc liquid-cooled
OHV dry-sump longitudinally
mounted single-cylinder four-stroke |
| Bore
and Stroke: |
86.5mm x 71.5mm |
| Induction: |
Keihin 34mm
throttle-body fuel-injection
system |
| Ignition: |
Full transistor
with electronic advance |
| Starter: |
Electric with
optional auxiliary recoil |
| Clutch:
|
Automatic |
| Transmission: |
ESP five-speed
with Reverse / Five-speed with
Reverse |
| Driveline:
|
Direct front
and rear driveshafts |
| Suspension
|
Front: Independent
double-wishbone; 6.3 inches
travel
Rear: Swingarm with single shock;
6.3 inches travel |
| Brakes
|
Front: Dual
hydraulic disc
Rear: Sealed mechanical drum |
| Tires
|
Front: 24x8-12
Rear: 24x10-11 |
| Length: |
80.9 inches |
| Width: |
46.1 inches |
| Height:
|
45.1 inches |
| Seat
Height: |
32.4 inches |
| Ground
Clearance: |
6.5 inches |
| Wheelbase:
|
49.2 inches |
| Turning
Radius: |
10.5 feet |
| Dry
Weight |
TRX420FE: 562
pounds
TRX420FM: 560 pounds |
|
Fuel Capacity: |
3.7 gallons |
| Colors: |
Red, Yellow,
Olive, NaturalGear Camo |
| Recommended
for riders 16 years of age and
older. |
