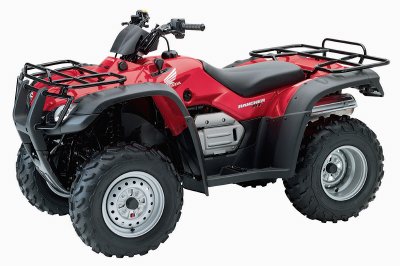

| Model: |
TRX400FA /
TRX400FGA (with GPS) |
| Engine
Type: |
397cc air-cooled
OHV dry-sump longitudinally
mounted single-cylinder four-stroke |
| Bore
and Stroke: |
85mm x 70mm |
| Carburetion: |
36mm constant-velocity |
| Ignition: |
CD with electronic
advance |
| Starter: |
Electric with
auxiliary recoil |
| Clutch: |
Automatic |
| Transmission: |
Fully automatic
hydromechanical, continuously
variable with electronic controls |
| Driveline: |
Direct front
and rear driveshafts with torque-sensitive
front differential |
| Suspension |
Front: Independent
double-wishbone; 5.9 inches
travel
Rear: Swingarm with single shock;
5.9 inches travel |
| Brakes |
Front: Triple-sealed
hydraulic drum
Rear: Sealed mechanical drum |
| Tires |
Front: 24x8-12
Rear: 24x10-11 |
| Length: |
80 inches |
| Width: |
43.9 inches |
| Height: |
45.2 inches |
| Seat
Height: |
32.4 inches |
| Ground
Clearance: |
7.2 inches |
| Wheelbase: |
49.1 inches |
| Turning
Radius: |
10.8 feet |
| Dry
Weight: |
559 pounds |
| Fuel
Capacity: |
3.8 gallons,
including 1.1-gallon reserve |
| Colors |
TRX400FA: Red,
Olive, Blue
TRX400FGA: Red, Olive |
| Recommended
for riders 16 years of age and
older. |
