| Model: |

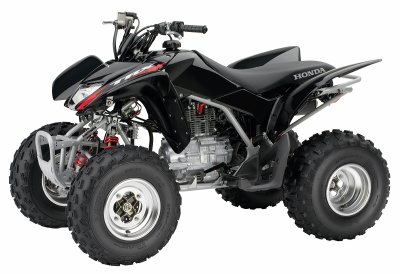

TRX250EX |
| Engine Type: |
229cc air-cooled OHV longitudinally
mounted single-cylinder four-stroke |
| Bore and Stroke: |
68.5mm x 62.2mm |
| Carburetion: |
22mm piston-valve |
| Ignition: |
CD with electronic advance |
| Starter: |
Electric |
| Clutch: |
Honda SportClutch |
| Transmission: |
Five-speed with reverse |
| Driveline: |
Direct rear driveshaft |
| Suspension |
Front: Independent double-wishbone;
5.9 inches travel
Rear: Swingarm with single
shock; 5.7 inches travel |
| Brakes |
Front: Dual hydraulic 174mm
discs
Rear: Sealed mechanical drum |
| Tires |
Front: 22 x 7-10 knobby
Rear: 22 x 10-9 knobby |
| Length: |
68.5 inches |
| Width: |
41.8 inches |
| Height: |
42.4 inches |
| Seat Height: |
31.4 inches |
| Ground Clearance: |
5.9 inches |
| Wheelbase: |
44.3 inches |
| Turning Radius: |
9.2 feet |
| Dry Weight: |
360 pounds |
| Fuel Capacity: |
2.7 gallons, including 0.7-gallon
reserve |
| Colors: |
Black, Red |
| Recommended for
riders 16 years of age and older. |
