| Model: | TRX500FM / TRX500FPM (with
                                      EPS) |

                                    | Engine Type: | 475cc air-cooled OHV longitudinally
                                      mounted single-cylinder four-stroke |

                                    | Bore and Stroke: | 92mm x 71.5mm |

                                    | Compression Ration: | 9.5:1 |

                                    | Induction: | Programmed Fuel Injection
                                      (PGM-FI), 36mm throttle body |

                                    | Ignition: | Full-transistorized type
                                      with electronic advance |

                                    | Starter: | Electric with auxiliary
                                      recoil |

                                    | Clutch: | Automatic |

                                    | Transmission: | ESP five-speed with Reverse |

                                    | Driveline: | Direct front
                                      and rear driveshafts with TraxLok and torque-sensitive
                                      front differential |

                                    | Suspension | Front: Independent
                                        double-wishbone; 6.7 inches travelRear: Swingarm with single
                                        shock; 6.9 inches travel
 |

                                    | Brakes | Front: Dual
                                      hydraulic 196mm disc Rear: Sealed 180mm mechanical drum
 |

                                    | Tires | Front: 25 x 8-12 Rear: 25 x 10-12
 |

                                    | Length: | 83.7 inches |

                                    | Width: | 47.4 inches |

                                    | Height: | 47.1 inches |

                                    | Seat Height: | 34.7 inches |

                                    | Ground Clearance: | 7.6 inches |

                                    | Wheelbase: | 50.4 inches |

                                    | Turning Radius: | 10.5 feet |

                                    | Fuel Capacity: | 4.0 gallons, including
                                      1.2-gallon reserve |

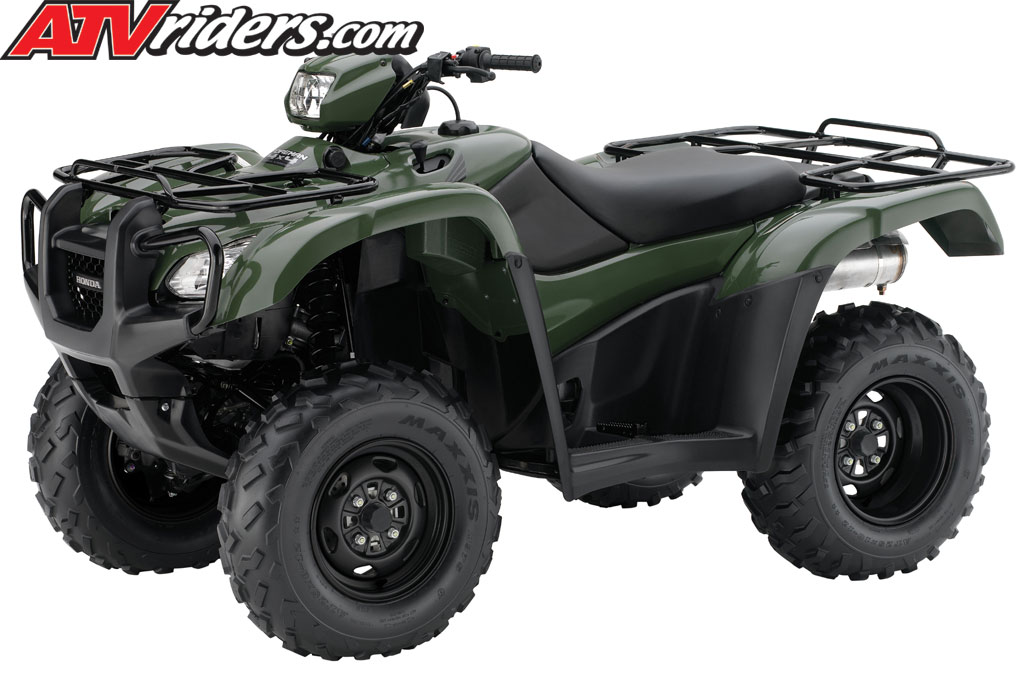

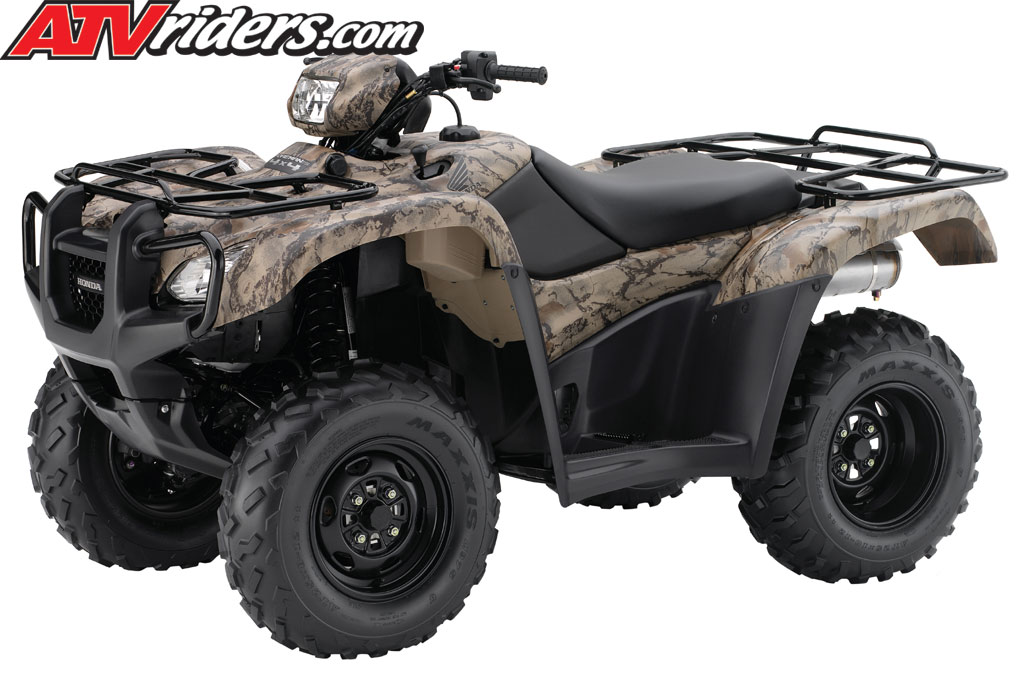

                                    | Colors: | Red, Olive, Natural Gear
                                      Camouflage |

                                    | Curb Weight*: | 628 pounds (TRX500FM) /
                                      644 pounds (TRX500FPM) |

                                    | *Includes all
                                      standard equipment, required fluids and
                                      full tank of fuel--ready to ride. |
