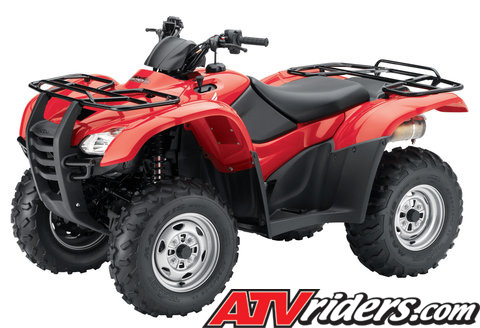

| Model: |
TRX420FA / TRX420FPA (with
EPS) |
| Engine Type: |
420cc liquid-cooled OHV
semi-dry-sump longitudinally mounted single-cylinder
four-stroke |
| Bore and Stroke: |
86.5mm x 71.5mm |
| Induction: |
Programmed Fuel Injection
(PGM-FI), 34mm throttle bodies |
| Ignition: |
Full-transistorized type
with electronic advance |
| Starter: |
Electric with optional
auxiliary recoil |
| Clutch: |
Automatic |
| Transmission: |
Automatic ((TRX420FA) /
ESP five-speed with Reverse (TRX420FPA) |
| Driveline: |
Direct front and rear driveshafts |
| Suspension: |
Front: Independent double-wishbone;
6.3 inches travel
Rear: Independent double-wishbone; 6.3 inches
travel |
| Brakes: |
Front: Dual hydraulic disc
Rear: Single hydraulic disc |
| Tires: |
Front: 24 x 8-12
Rear: 24 x 10-11 |
| Length: |
80.9 inches |
| Width: |
46.1 inches |
| Height: |
45.8 inches |
| Seat Height: |
32.4 inches |
| Ground Clearance: |
9.1 inches |
| Wheelbase: |
49.4 inches |
| Turning Radius: |
10.5 feet |
| Fuel Capacity:
|
3.5 gallons, including
1.0-gallon reserve |
| Colors: |
Red, Olive, Natural Gear®
Camouflage |
| Curb Weight*: |
623 pounds (TRX420FA) /
642 pounds (TRX420FPA) |
*Includes all
standard equipment, required fluids and
full tank of fuel--ready to ride.
Meets current EPA and CARB off-road emissions
standards.
Recommended for riders 16 years of age and
older. |
