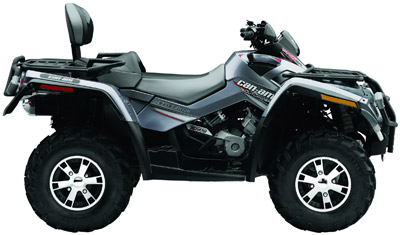

2008 Can-Am Outlander MAX 800 H.O. EFI Ltd ATV

Outlander MAX 800 H.O. EFI Ltd Specifications:

ENGINE
Type	800cc, 4-stroke, V-twin, liquid-cooled, 8-valve SOHC
Bore & Stroke	91 x 62 mm
Torque	73 Nm @ 5,500 RPM
Fuel Delivery	EFI, 46mm Throttle Body, 2 Siemens‡ VDO injectors
Starting System	Electric
Transmission	CVT, sub-transmission with high, low, park, neutral & reverse
Drive Train	Selectable 2x4/4x4 shaft driven with Visco-Lok† front differential
CHASSIS
Frame	SST
Front Suspension Type	Double A-arm, Forged Aluminum upper arm
Travel	8 in (203 mm)
Rear Suspension Type	TTI independent
Travel	9 in (229 mm)
Front Brake	2 inboard hydraulic discs
Rear Brake	1 inboard hydraulic disc
Tires /Front	26 x 8 x 12 in (660 x 203 x 305 mm)
Tires /Rear	26 x 10 x 12 in (660 x 254 x 305 mm)
Wheels	Ltd Edition Cast aluminum
DIMENSIONS
L x W x H	94 x 46 x 45 in (2,387 x 1,168 x 1,143 mm)
Wheelbase	59 in (1,499 mm)
Dry Weight	707 lbs (321 kg)
Ground Clearance	12 in (305 mm)
Seat Height	34.5 in (877 mm)
Rack Capacity	Front: 100 lbs (45 kg) Rear: 200 lbs (90 kg)
Towing Capacity	1,300 lbs (590 kg)
Fuel Capacity	5.3 US gal (20L)
FEATURES
Instrumentation	Digital speedometer, digital tachometer, bar graph RPM, bottom bar numerical RPM, odometer, hour and tripmeters, diagnostic center, gear position, engine hourmeter, 4x4 indicator, temp./engine lights, electronic fuel gauge, low fuel light, auto shut off after 15 minutes, high/low beam indicator. Anti-theft D.E.S.S. (Digital Encoded Security System)
Anti-theft	D.E.S.S. (digital encoded security system)
Storage	Rear storage 5.3 US gal (20L) CRS (Convertible Rack System)
Electrical	Prewired for winch
Lighting	2 fender mounted headlamps (35W) with tail light / brake light
DC Outlet	Lighter-type in console, Standard connector at the back (15A)
Limited Edition Package:	BRP XL 3000 CI winch, roller fairlead, wired remote control, special cast aluminum rims, agressive tread Carlisle ACT radial tires, heavy-duty front & rear bumpers, handguards, mudguards, integrated/ removable GPS, premium seat, premium handgrips, muffler trim, Metallic Grey painted body parts.
Color	Steel Grey Metallic
