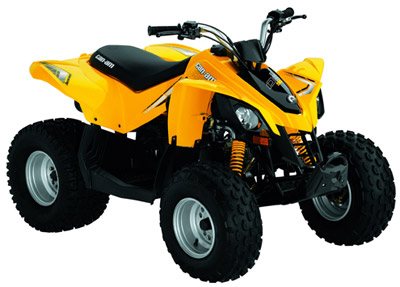

DS 90 and DS 70 Youth Sport ATV's - Specifications

DS 90 and DS 70 Youth Sport ATV Specifications:

ENGINE	DS 90	DS 70
Type	90cc, 4-stroke, single, force aircooled, 2-valve	70cc, 4-stroke, single, force aircooled, 2-valve
Bore & Stroke	49.5 x 48 mm	47 x 40 mm
Fuel Delivery	Carburetion, Keihin	Carburetion, Keihin
Starting System	Electric & kick start	Electric & kick start
Transmission	Automatic CVT, Forward, Neutral & Reverse	Automatic CVT, Forward, Neutral & Reverse
Drive Train	Chain driven / solid axle	Chain driven / solid axle
ATV CHASSIS
Frame	DS 90 / DS 70	DS 90 / DS 70
Front Suspension	Independent A-arm	Independent A-arm
Travel	3.4 in (86 mm)	3.4 in (86 mm)
Rear Suspension	Swingarm	Swingarm
Travel	6.3 in (160 mm)	6.3 in (160 mm)
Front Brake	Double drum	Double drum
Rear Brake	Drum	Drum
Tires /Front	19 x 7 x 8 in	19 x 7 x 8 in
Tires /Rear	18 x 9.5 x 8 in	18 x 9.5 x 8 in
Wheels	Steel, sport	Steel, sport
ATV DIMENSIONS
L x W x H	59.8 x 35.6 x 36.8	59.8 x 35.6 x 36.8
Wheelbase	39 in (1,000 mm)	39 in (1,000 mm)
Dry Weight	260 lbs (118 kg)	260 lbs (118 kg)
Ground Clearance	8.3 in under frame / 4.5 in under axle	8.3 in under frame / 4.5 in under axle
Seat Height	27 in (685 mm)	27 in (685 mm)
Fuel Capacity	1.6 US gal. (6L)	1.6 US gal. (6L)
ATV FEATURES
Instrumentation	Reverse, neutral	Reverse, neutral
Storage	Front storage 0.7 US gal. (2.7L)	Front storage 0.7 US gal. (2.7L)
Lighting	Day lights	Day lights
Standard Colors	Yellow	Yellow
