Rotax 800R V-Twin engine
– This 80º V-twin
engine is even more powerful for
2009, yet retains its smooth power
delivery. The liquid-cooled, single
overhead cam powerplant has four
valves per cylinder and is fed by
a 46mm throttle body and two VDO
Siemens fuel injectors.
The sophisticated electronic fuel
injection system automatically keeps
the 800R engine’s performance
at its peak, regardless of temperature
or altitude. The progressive throttle
ensures power is manageable whether
in precise rock crawling or opening
it up on the straights.
Visco-Lok front differential
– This Can-Am-exclusive
technology progressively transfers
power from a slipping front wheel
to the gripping one – totally
automatically. There are no buttons
to push, no levers to pull, and
makes the Renegade easy to steer
when navigating nasty surfaces.
No speed or rev limiter means it
is true all-wheel drive.
 |
Renegade
800R RS-Type Front ATV Suspension
|
RS-Type front suspension –
Developed with top racers, this double
A-arm set-up delivers precise handling
and control in even the roughest stuff.
8.5 inches (21.6 cm) of travel means great
ride quality. Dive-control geometry tightly
controls the roll-center, especially entering
corners. Aluminum upper A-arm and mounts
reduce weight.
RS-Type TTI rear suspension
– The simplest rear
ATV suspension (75% fewer parts
than competitive designs), with
a trailing arm on a single pivot.
TTI ensures zero scrub for a more
stable ride, especially in bumpy
terrain. 9 inches (22.9 cm) of race-developed
travel and damping.

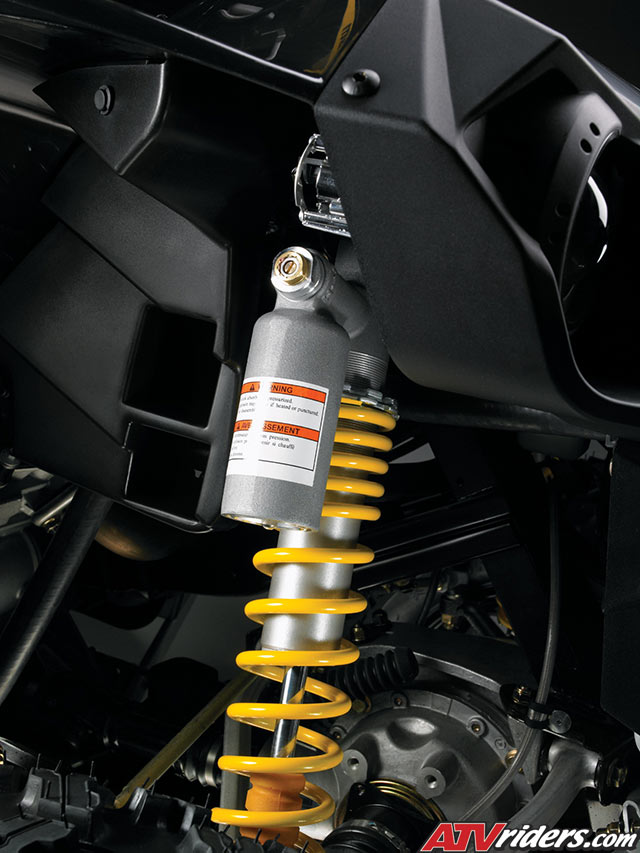

HPG Shocks –
High quality high pressure gas shocks
soak up even the gnarliest bumps.
Shocks feature five-way preload
adjustability.
 |
 |

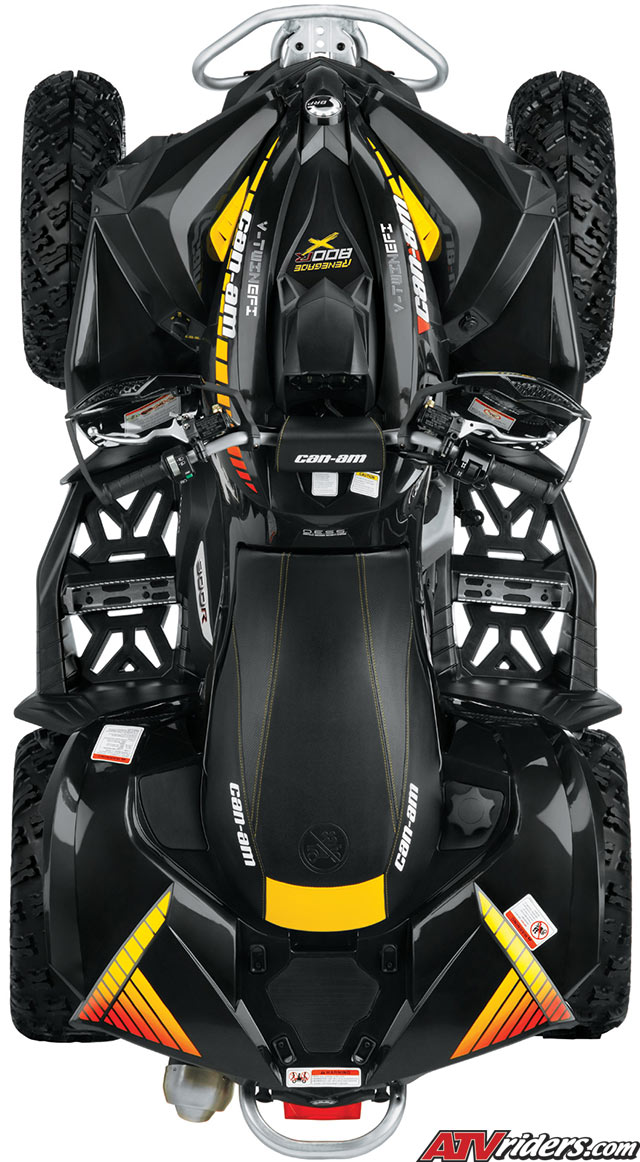

Can-Am
Renegade 800R 4x4 EFI ATV
X-Package Top and Bottom
Views.
|
Center-cast aluminum wheels
– Rolled edge rims of rolled
aluminum are mated with sharply-styled
cast aluminum centres – the best
of both worlds.
Holeshot ATR Tires –
Optimal grip, especially in corners, thanks
to a cross-country pattern and six-ply
sidewalls.
Multi-function digital gauge
– Its compact size belies
the large number of features. Easy to
read.
Independent front and
rear braking systems –
For improved control and ride feel.
Quad 60W projector beam headlights
– For exceptional nighttime
visibility.
