ENGINE |

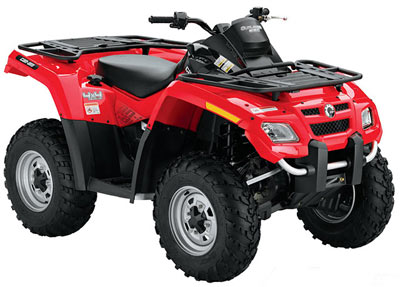

OUTLANDER
650 EFI 4X4
|
OUTLANDER
MAX 650 EFI 4X4
|
| Type |
649.6cc,
V-twin, liquid-cooled, SOHC, 8-valve
(4-valve / cyl) |
649.6cc,
V-twin, liquid-cooled, SOHC, 8-valve
(4-valve / cyl) |
| Bore
& Stroke |
82
x 62 mm |
82
x 62 mm |
| Fuel
Delivery |
EFI,
46mm Throttle Body,
2 Siemens‡ VDO injectors |
EFI,
46mm Throttle Body,
2 Siemens‡ VDO injectors |
| Starting
System |
Electric |
Electric |
| Transmission |
CVT,
sub-transmission with high, low,
park, neutral & reverse. Standard
Engine braking |
CVT,
sub-transmission with high, low,
park, neutral & reverse. Standard
Engine braking |
| Drive
Train |
Selectable
2x4/4x4 shaft driven
with Visco-Lok† front
differential |
Selectable
2x4/4x4 shaft driven
with Visco-Lok† front differential |
CHASSIS |
Frame
|
SST |
SST |
| Front
Suspension Type |
Double
A-arm,
Forged Aluminum upper arm |
Double
A-arm,
Forged Aluminum upper arm |
| Travel |
8
in (203 mm) |
8
in (203 mm) |
| Rear
Suspension Type |
TTI
independent |
TTI
independent |
| Travel |
9
in (229 mm) |
9
in (229 mm) |
| Front
Brake |
2
inboard hydraulic discs |
2
inboard hydraulic discs |
| Rear
Brake |
1
inboard hydraulic disc |
1
inboard hydraulic disc |
| Tires
/Front |
26
x 8 x 12 in (660 x 203 x 305 mm) |
26
x 8 x 12 in (660 x 203 x 305 mm) |
| Tires
/Rear |
26
x 10 x 12 in (660 x 254 x 305
mm) |
26
x 10 x 12 in (660 x 254 x 305
mm) |
| Wheels |
Steel |
Steel |
DIMENSIONS |
| L
x W x H |
86
x 46 x 45 in
(2,184 x 1,168 x 1,143 mm ) |
94
x 46 x 45 in
(2,387 x 1,168 x 1,143 mm) |
Wheelbase
|
51
in (1,295 mm) |
59
in (1,499 mm) |
| Dry
Weight |
660
lbs (290 kg) |
710
lbs (313 kg) |
| Ground
Clearance |
12
in (305 mm) |
12
in (305 mm) |
Seat
Height
|
34.5
in (877 mm) |
34.5
in (877 mm) |
| Rack
Capacity |
Front:
100 lbs (45 kg)
Rear: 200 lbs (90 kg) |
Front:
100 lbs (45 kg)
Rear: 200 lbs (90 kg) |
| Towing
Capacity |
1,300
lbs (590 kg) |
1,300
lbs (590 kg) |
| Fuel
Capacity |
5.3
US gal (20L) |
5.3
US gal (20L) |
FEATURES |
| Instrumentation |
Multi-function
digital LCD gauge: Speedometer,
tachometer (bar graph RPM, bottom
bar numerical RPM), odometer,
trip meter, diagnostic center,
gear position, hour meter, engine
hour meter, 4x4 indicator, temperature
and engine lights, fuel gauge,
auto shut off after 15 minutes |
Multi-function
digital LCD gauge: Speedometer,
tachometer (bar graph RPM, bottom
bar numerical RPM), odometer,
trip meter, diagnostic center,
gear position, hour meter, engine
hour meter, 4x4 indicator, temperature
and engine lights, fuel gauge,
auto shut off after 15 minutes |
| Anti-theft |
D.E.S.S.
(digital encoded security system) |
D.E.S.S.
(digital encoded security system) |
| Storage |
Rear
storage 5.3 US gal (20L) |
Rear
storage 5.3 US gal (20L)
CRS (Convertible Rack System) |
| Electrical |
Prewired
for winch |
Prewired
for winch |
| Lighting |
2
fender mounted headlamps
(35W) with tail light / brake
light |
2
fender mounted headlamps
(35W) with tail light / brake
light |
| DC
Outlet |
Lighter-type
in console, Standard connector
at the back (15A) |
Lighter-type
in console, Standard connector
at the back (15A) |
| XT
Package Content Available |
BRP
XL 3000 winch with roller airlead
and wired remote controls Cast
aluminum rims (except camo) Agressive
Carlisle ACT Radial tires Heavy-duty
front & rear bumpers Handlebar
wind deflectors |
BRP
XL 3000 winch with roller airlead
and wired remote controls Cast
aluminum rims (except camo) Agressive
Carlisle ACT Radial tires Heavy-duty
front & rear bumpers Handlebar
wind deflectors |
| XT
Package Colors |
Black,
Viper Red, Yellow, Camo |
Black,
Viper Red, Yellow, Camo |
| Standard
Colors |
Yellow,
Viper Red |
Yellow,
Viper Red |
