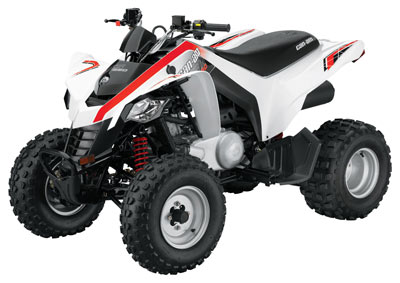

DS250 ENGINE
|
|
| Type |
249.4cc,
4-stroke single, liquid-cooled,
4-valve SOHC |
| Bore
& Stroke |
71 x 63 mm |
| Fuel
Delivery |
Carburetion, Keihin
PTG 23 |
| Starting
System |
Electric |
| Transmission |
Automatic CVT,
sub-transmission with forward,
neutral & reverse |
| Drive
Train |
Chain
driven/solid axle |
DS250 CHASSIS
|
Frame
|
DS 250 |
| Front
Suspension Type |
Double
A-arm, 5-position adjustable pre-load |
| Travel |
5.5 in (140 mm)
|
| Rear
Suspension Type |
Swing-arm,
5-position adjustable pre-load |
| Travel |
6.7 in (170 mm)
|
| Front
Brake |
2
hydraulic discs |
| Rear
Brake |
1 hydraulic disc |
| Tires
/Front |
22
x 7 x 10 in (559 x 178 x 254 mm) |
| Tires
/Rear |
20 x 11 x 9 in
(508 x 279 x 229 mm) |
| Wheels |
Steel |
DS250 DIMENSIONS
|
| L
x W x H |
72 x 40.5 x 43.5
in (1,830 x 1,030 x 1,105 mm) |
Wheelbase
|
47
in (1,194 mm) |
| Dry
Weight |
429 lbs (194 kg) |
| Ground
Clearance |
10.2
in (260 mm) Center of ATV |
Seat
Height
|
31.5 in (800 mm) |
| Fuel
Capacity |
3.3
US gal (12.5L) |
DS250
FEATURES
|
| Instrumentation |
Neutral
light, reverse light and oil/temperature
light |
| Lighting |
2 headlamps (35W)
with tail light /brake light |
| DC
Outlet |
Yes |
| Color |
Yellow / Can-Am
Red |
