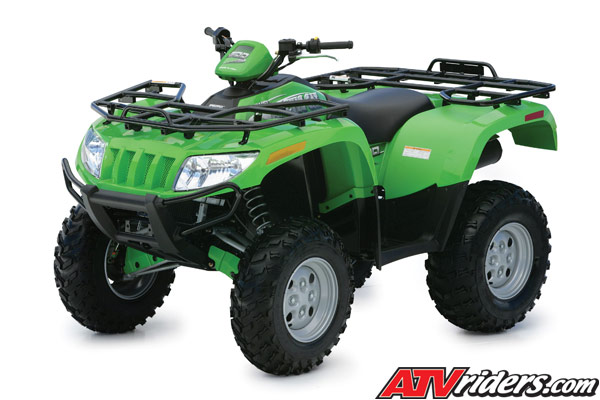

Arctic
Cat 500 4x4 models have an array of features that
guarantee a spot at the top of the 500-class machine
category.
Leading the charge is body styling with wide
fenders for increased protection from water
and mud spray, “Cat-Eye” headlights,
full plastic floorboards that are integrated
with body plastic and a large, centrally-located
storage compartment. A wide seat adds comfort
and features an easy-to-use latch for seat removal
and provides access to the tool tray.
Getting more traction out of the 500 models
is as easy as flipping a switch. The full-lock
front differential is easily activated from
a handlebar mounted lever to quickly engage/disengage
the front wheels. It complements the electronic
2WD/4WD switch for convenient power delivery
options and riding ease.
Like most of the Arctic Cat models, the 500’s
come standard with SpeedRacks front and rear,
adding unmatched versatility with a large selection
of accessory attachments. A rear-mounted 6.5-gallon
fuel tank offers outstanding range, and the
sealed air intake is located near the front
of the machine assuring a quiet ride. The hydraulic
foot rear brake system with remote reservoir
is matched with floating calipers for added
value.
500-class consumers have their choice of a
Duramatic Automatic Transmission, which features
engine braking, or the five-speed manual transmission
(with Hi/Lo range). A new one-piece, toe shifter
is now standard on all Manual 2006 models. Powering
the 500 is the rugged liquid-cooled, four-stroke
engine that maintains consistent performance
in any condition.
Best-in-class features on the 500’s include
12 inches of ground clearance, 10 inches of
suspension travel, 100/200-lb. front/rear rack
capacities, 1,050-lb. towing capacity, standard
2-in. “automotive style” receiver
hitch and maintenance-free suspension bushings.
Adding comfort and convenience are features
like Auto Electronic Choke for quick, one-touch
starting, a digital instrument pod with 14 different
display indicators like MPH, odometer, dual
trip meters, hour meter, clock and fuel level,
and a five-position spring preload adjustment
on the front and rear shocks, and single lever,
hand-operated hydraulic disc brakes.
36mm Keihin carburetor with
automatic electronic choke
Liquid cooling system with
high-capacity radiator and thermostatically-controlled
cooling fan provides consistent engine operating
temperatures
Duramatic Automatic Transmission,
with long life maintenance free belt
500
4x4 Chassis/Suspension Info
Displays up to 14 critical
operation information indicators including:
clock/hour meter, fuel level, mode button,
set/reset button, odometer/trip, gear position,
speedometer/tachometer, needle display, differential
lock, drive select, high beam, battery condition,
temperature and oil pressure.
The newly developed Goodyear
Rawhide RS is standard on all Arctic Cat ATVs
(25x8-12 front, 25x10-12 rear) for improved
traction, durability and ride handling.
A redesigned handlebar with
improved bend for increased ergonomic comfort
in all riding situations.
Easily removable engine
covers protect riders legs from engine heat
dissipation while diffusing sound, creating
a clean appearance to the engine compartment.
Larger diameter, stainless
steel header pipe allows engine to breathe
easier and resists possible corrosion
One-piece toe shifter (manual
transmissions) for optimal manual shifting
performance that can be converted to heel-toe
shifter. All conversion parts included with
unit
With Hi/Lo-Range allows
responsive acceleration and engine braking.
Transmission also features start-in-gear to
get you going faster.
Wide fenders for increased
water and mud protection, a high-density durable
plastic skidplate that doesn’t rip or
rust, “Stick Stoppers” protect
CV boots and ATVs are outfitted with Zero-maintenance
suspension bushings, sealed drive shafts (front
and rear), and constant-velocity (CV) joints
Arctic Cat ATVs have an optional
sway bar available as an accessory purchase
through your authorized dealer. Similar to
any off-road 4x4 vehicle, eliminating the
sway bar, lets the 10” of front or rear
Fully Independent Suspension articulate through
the full range of suspension travel. This
increased articulation provides full tire
contact in all types of off-camber terrain.
The addition of the sway bar will impact the
traction capabilities; however, it will enhance
flatter cornering in aggressive trail riding
12” of ground clearance
enhances the ability to navigate through mud
or over large rocks, logs, and other objects
encountered in rough terrain
Industry leading weight
capacity and overall cargo carrying surface
area allows 100 lb carrying capacity on the
front rack and 200 lbs. on the rear
Allows very quick installation
and removal of a wide variety of Arctic Cat
SpeedRack and its accessories
add value to the machine and also enhance
the efficiency of your hunting, fishing, farming
or utility chores
This feature allows the
consumer to remove the hitch from their 2”
automotive receiver and install it into the
ATV’s receiver hitch
Low maintenance, positive
stopping power in either dry or wet conditions
Set the spring preload (5
rear positions, 5 front positions) on the
shocks to tailor the ride to individual riding
styles, terrains and loads
Full-lock front differential
transfers engine torque to both front wheels
when selected for added traction with a flip
of the switch. 4x4/2x4 switch is located on
right-side handlebar for quick, convenient
shifting in-and-out of four-wheel drive
500
4x4 Key Features
Fully independent suspension
Adjustable preload shocks
12 inches of industry leading ground clearance
10 inches of front and rear suspension
travel
SpeedRacks are standard
Fully automatic transmission
Reliable 4-stroke engine
On-the-fly electric shift 2- to 4-wheel
drive with front locking differential
