2009 Arctic Cat 700 H1 EFI
Utility ATV Info - Continued
Arctic
Cat 700 H1 ATV Engine:
|
-
 |
Arctic
Cat 700 H1 ATV Engine
|
695cc, EFI, SOHC 4-stroke,
4-valve, single-cylinder, liquid cooled
engine
- The “H”
in H1 stands for Hemi. The hemispherical-shaped
head creates more complete, more efficient
combustion for performance-winning power
- An Arctic Cat produced
performance engine built in the state-of-the-art
S G Gt. Cloud manufacturing facility
- The H1 motor has led
Team Arctic racers to two consecutive
championships in the World Powersports
Association (WPSA) Quad Terrain races.
- Electronic Fuel Injection
aids in perfect starting no matter what
altitude or temperature changes.
- Liquid cooling system
with high-capacity radiator and thermostatically-controlled
cooling fan provides consistent engine
operating temperatures
- The Duramatic Automatic
Transmission has a long-life maintenance-free
belt that withstands the harshest of conditions.
|
| |
Arctic
Cat 700 H1 ATV Chassis/Suspension:
|
- Machined Aluminum
Wheels (SE)
- All new 12” machined aluminum
wheel design has an optimized scrub radius
minimizing the rider steering effort.
(12” Steel wheels on Non-700 SE
models)
- Positive Shifting
- A new shift detent profile
in the lever linkage allows for improved
positive shifting
- Thundercat Halfshafts
- Developed from the Quad Terrain
Race circuit, All new halfshafts (axles)
were adopted from the Thundercat to increase
durability and strength for the most brutal
offroad conditions.
- New Headlight
Bulb Sockets - The right-hand
headlight bulb sockets have been redesigned
to eliminate the bulb popping out, decreasing
the chance of the headlight housing filling
with moisture.
- Fully Independent
Suspension (FIS) How it works with or
without a swaybar - Arctic Cat
ATVs have an optional sway bar available
as an accessory purchase through your
authorized dealer. Similar to any off-road
4x4 vehicle, eliminating the sway bar,
lets the 10” of front or rear Fully
Independent Suspension articulate through
the full range of suspension travel. This
increased articulation provides full tire
contact in all types of off-camber terrain.
The addition of the sway bar will impact
the traction
capabilities; however, it will enhance
flatter cornering in aggressive trail
riding
-
 |

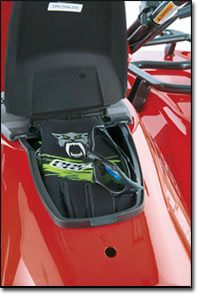

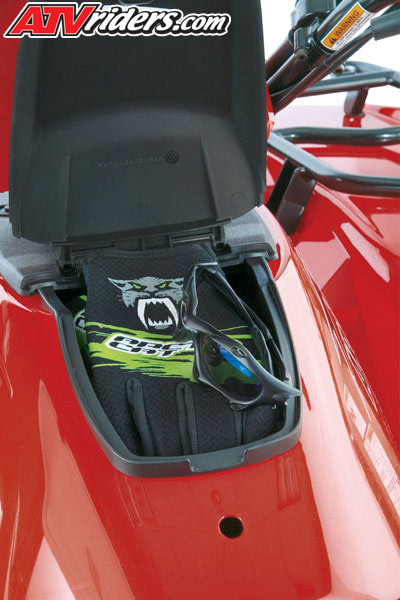

Arctic
Cat 700 H1 ATV Storage
|
Performance Tuned
Chassis - When you sit on the
700 H1 EFI, it will squat roughly 2 inches
(depending on rider size) while maintaining
Arctic Cat’s class leading 11”
of ground clearance and 10” of suspension
travel. This ride-in calibration lowers
center of gravity for precise cornering
- Performance Minded
Ergonomics - The seat on the
700 H1 EFI has been redesigned and lowered
approximately one inch to reduce the riders
center of gravity along with giving an
improved sense of sitting “In”
the machine instead of “On”
it.
- Industry Leading
Ground Clearance - 11”
of ground clearance enhances the ability
to navigate through mud or over large
rocks, logs, and other objects encountered
in rough terrain
- Large Capacity
SpeedRacks - Industry leading
weight capacity and overall cargo carrying
surface area allows 100 lb carrying capacity
on the front rack and 200 lbs. on the
rear
- SpeedRack Technology:
• Allows very quick installation
and removal of a wide variety of Arctic
Cat exclusive accessories without the
need for tools, bloody knuckles or swearing
• SpeedRack and its accessories
add value to the machine and also enhance
the efficiency of your hunting, fishing,
farming or utility chores
- 2-Inch Automotive
Style Receiver Hitch - This feature
allows the consumer to remove the hitch
from their 2” automotive receiver
and install it into the ATV’s receiver
hitch
- Floating Hydraulic
Disc Brakes - Low maintenance,
positive stopping power in either dry
or wet conditions
- Adjustable Shocks
- Set the spring preload (5 rear
positions, 5 front positions) on the shocks
to tailor the ride to individual riding
styles, terrains and loads
- Electric Shift
2-to 4-Wheel Drive with new Electric Front
Locking Differential - Full-lock
front differential transfers engine torque
to both front wheels when selected for
added traction with an all new electronic
rocker switch located on the gauge pod
while 4wd/2wd switch is located on right-side
handlebar for quick, convenient shifting
in-and-out of four-wheel
|
Additional
700 H1 ATV Features:
|
- Stylish SE -
All SE models have an all-new
machined aluminum wheel and are available
in Competition Silver painted body panels.
- Digital Instrument
Pod - Displays up to 14 critical
operation information indicators including:
clock/hour meter, fuel level, mode button,
set/reset button, odometer/trip,
gear position, speedometer/tachometer,
needle display, differential lock, drive
select, high beam, battery condition,
temperature and oil pressure
- Tires - The
newly developed Dunlop Quadmax is standard
on all Arctic Cat ATVs. (25x8-12 front,
25x10-12 rear)
- Color Options
- Dark Green, Camo, Lime Green,
Red, Competition Silver (SE)
|
