2009 Arctic Cat TRV 550 H1 Utility ATV Model Info

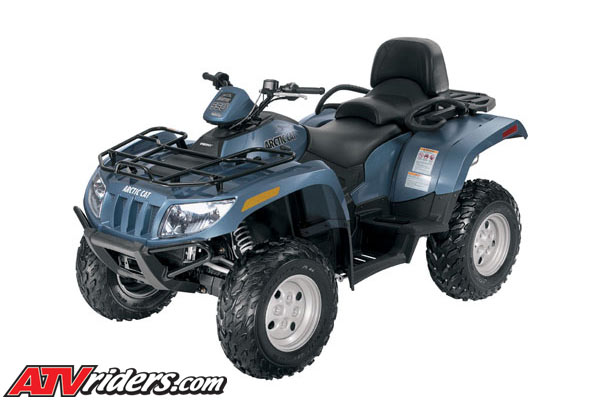

The New 2009 Arctic Cat TRV 550 H1 EFI Utility ATV

Arctic Cat TRV550 H1 ATV Introduction

Arctic Cat TRV 550 H1 Arctic Cat has a huge spectrum of ATV’s that come in sizes and cc’s to satisfy just about every class, except for a 500 class machine. Now Arctic Cat has filled that need with the new 550 H1. The new Arctic Cat 550 H1 takes it design from big brother, the 650 H1. Powered by an EFI 545cc, SOHC, single-cylinder, liquid-cooled engine, the 550 H1 provides plenty of torque and horsepower to negotiate tough terrain and obstacles with ease. The seat on the 550 H1 sits one inch lower than what was last years standard on the 650 H1 which allows the rider to feel like they are sitting more “in” the quad than on top of it. A new handlebar design has been incorporated to give better ergonomics as well. The 550 H1 comes with fully independent front and rear double A-arm suspension and is equipped with preload adjustable shocks. The machine also includes a full-length skid plate, to give added protection when going over obstacles on the trails. The stance and suspension of the 550 H1 are race inspired. It has approximately 2 inches of “ride in”, meaning the machine will squat approximately 2 inches with the rider on board without loosing any of its 11 inches of ground clearance and 10 inches of suspension travel. The lower ride height and center of gravity makes the machine feel more stable while instilling confidence in aggressive cornering and high-speed handling. The 550 H1 is equipped with extra wide fenders that offer superior mud protection and its 25 inch Dunlop Quadmax tires, mounted on 12 inch steel wheels offer plenty of bite and traction to get the power to the ground.

Arctic Cat TRV550 H1 ATV Key Features

The H1 revolution of hemi-producing power has arrived in the 500 class with EFI. As you can imagine, the 550 H1 EFI has a powerful 545cc, SOHC, single-cylinder, liquid-cooled engine, designed for a wide torque curve with the smoothest power delivery via Electronic Fuel Injection. 550 H1 motor has a 10% increase of power at a lower RPM versus the 500 and a 25% gain in torque. The TRV has numerous features to ease riding convenience. Chief among them is a two-up seat with cushioned seat back for legal trail riding. Improved ergonomics and an easy pin-pull removal system allow you to transform the TRV into a single-rider vehicle. If you choose to leave it in the single rider mode, a rear SpeedRack is available as an accessory from your authorized dealer. Going from 2WD to 4WD is as simple as pressing a shift button, while activating the front diff-lock is as easy as pushing the all-new electronic rocker switch button located on the instrument pod. Simplicity also holds true for the electronic choke system. Start-In-Gear ability and single lever hand operated hydraulic disc brakes. The double A-arm front suspension and fully independent rear suspension (both with five-position spring preload adjustment) deliver 8 inches of travel and keep the ride firmly planted and comfortable. And 10 inches of ground clearance helps you clear nearly all trail obstacles.

Arctic Cat TRV550 H1 ATV Engine:

545cc, EFI, SOHC 4-stroke, 4-valve, single-cylinder, liquid cooled engine The “H” in H1 stands for Hemi. The hemispherical-shaped head creates more complete, more efficient combustion for performance-winning power An Arctic Cat produced performance engine built in the state-of-the-art St. Cloud manufacturing facility Electronic Fuel Injection aids in perfect starting no matter what altitude or temperature changes. Liquid cooling system with high-capacity radiator and thermostatically-controlled cooling fan provides consistent engine operating temperatures The Duramatic Automatic Transmission has a long-life maintenance-free belt that withstands the harshest of conditions.

Arctic Cat TRV 550 H1 ATV Chassis/Suspension:

Arctic Cat TRV 400 and 550 H1 Rack 3-1 ATV: • Passenger seat is easily removed by pulling two pins • An optional rear SpeedRack can be purchased for use when the passenger seat is not in use or option of composite truck box. The best three in one ATV available Two-up Riding Capability: • Specifically designed for two up riding • Redesigned seat with better ergonomics in mind • Can also function as a one person ATV Revised Rear Seat Assembly - New 5 degree angled backrest combined with improved seat foam add for hours of extended riding time in pure comfort. Improved Rider Input - 12” steel wheel design has an optimized scrub radius minimizing the rider steering effort. Positive Shifting - A new shift detent profile in the lever linkage allows for improved positive shifting Thundercat Halfshafts - Developed from the Quad Terrain Race circuit, All new halfshafts (axles) were adopted from the Thundercat to increase durability and strength for the most brutal offroad conditions. New Headlight Bulb Sockets - The right-hand headlight bulb sockets have been redesigned to eliminate the bulb popping out, decreasing the chance of the headlight housing filling with moisture. Fully Independent Suspension (FIS) How it works with or without a swaybar - Arctic Cat ATVs have an optional sway bar available as an accessory purchase through your authorized dealer. Similar to any off-road 4x4 vehicle, eliminating the sway bar, lets the 10” of front or rear Fully Independent Suspension articulate through the full range of suspension travel. This increased articulation provides full tire contact in all types of off-camber terrain. The addition of the sway bar will impact the traction capabilities; however, it will enhance flatter cornering in aggressive trail riding Performance Tuned Chassis - When you sit on the 550 H1 EFI, it will squat roughly 2 inches (depending on rider size) while maintaining Arctic Cat’s class leading 11” of ground clearance and 10” of suspension travel. This ride-in calibration lowers center of gravity for precise cornering Performance Minded Ergonomics - The seat on the 550 H1 EFI has been redesigned and lowered approximately one inch to reduce the riders center of gravity along with giving an improved sense of sitting “In” the machine instead of “On” it. Large Capacity SpeedRacks - Industry leading weight capacity and overall cargo carrying surface area allows 100 lb carrying capacity on the front rack and the all-new composite rear rack can carry 50 lbs. SpeedRack Technology: • Allows very quick installation and removal of a wide variety of Arctic Cat exclusive accessories without the need for tools, bloody knuckles or swearing • SpeedRack and its accessories add value to the machine and also enhance the efficiency of your hunting, fishing, farming or utility chores 2-Inch Automotive Style Receiver Hitch - This feature allows the consumer to remove the hitch from their 2” automotive receiver and install it into the ATV’s receiver hitch (Receiver and ball standard on LE) Floating Hydraulic Disc Brakes - Low maintenance, positive stopping power in either dry or wet conditions Adjustable Shocks - Set the spring preload (5 rear positions, 5 front positions) on the shocks to tailor the ride to individual riding styles, terrains and loads Electric Shift 2-to 4-Wheel Drive with new Electric Front Locking Differential - Full-lock front differential transfers engine torque to both front wheels when selected for added traction with an all new electronic rocker switch located on the gauge pod while 4wd/2wd switch is located on right-side handlebar for quick, convenient shifting in-and-out of four-wheel drive.

Additional TRV 550 H1 ATV Features:

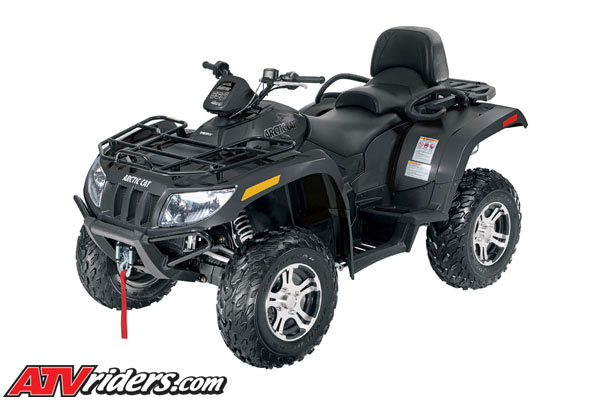

Limited Edition - TRV 550 H1 comes in a Limited Edition with all the great features of the standard model, but additionally has a 3,000lb Warn Winch, Driver and Passenger Hand Warmers, 2” Receiver Hitch w/ball, Cat Black Metallic Painted bodywork, 12” Aluminum wheels. Digital Instrument Pod - Displays up to 14 critical operation information indicators including: clock/hour meter, fuel level, mode button, set/reset button, odometer/trip, gear position, speedometer/tachometer, needle display, differential lock, drive select, high beam, battery condition, temperature and oil pressure Tires - The newly developed Dunlop Quadmax is standard on
